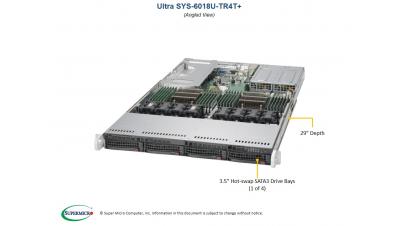

SYS-6018U-TR4T+
1U Ultra, 3TB DDR4
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s |
|---|---|
| Key Applications | • Virtualization • Cloud Computing • High End Enterprise Server |
| Outstanding Features | • Flexible LAN options • 24 DIMM slots • 4 PCI-E Add-on cards • SAS3 support • 160W CPU support • Platinum Level Power Supply • 2 SATA DOM support with embedded power |
| Serverboard | SUPER● ® X10DRU-i+ |
| Chipset | Intel® C612 Chipset |
| System Memory(Max.)* | Up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 24 DIMM slots |
| Expansion Slots | 2 PCI-E 3.0 x 16 (FH, 10.5”L); 2 PCI-E 3.0 x 8 (1 LP, 1 Internal LP) |
| Onboard Storage Controller |
Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Connectivity | 4 10Gbase-T ports; 5 USB 3.0 ports (2 rear, 2 onboard header, 1 Type A); 1 Serial Port |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 4 hot-swap 3.5” drive bays support |
| Peripheral Bays | Optional 1 slim DVD-ROM drive |
| Power Supply | 750W Platinum Level Power Supply |
| Cooling System | 4 heavy duty fans w/ Optimal Fan Speed Control, 1 Air Shroud |
| Form Factor | 1U Rackmount 437 x 43 x 737.1mm (17.2” x 1.7” x 29.02”) |

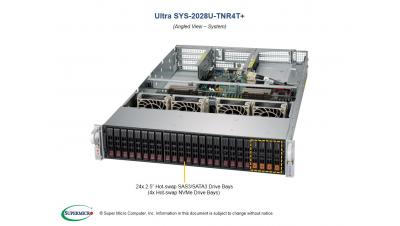

SYS-2028U-TNR4T+
2U Ultra, 2.5” Drives, NVMe, Titanium Level Power
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s |
|---|---|
| Key Applications | • Virtualization • Cloud Computing • High End Enterprise Server |
| Outstanding Features | • 24 DIMM slots • 24x 2.5” hot-swap drive bays • 4-port NVMe SSD Support • 160W CPU support • Titanium Level Power Supply • 2 SATA DOM support with embedded power |
| Serverboard | SUPER● ® X10DRU-i+ |
| Chipset | Intel® C612 Chipset |
| System Memory(Max.)* | Up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 24 DIMM slots |
| Expansion Slots | 6 PCI-E 3.0 x 8 (4 FH, 10.5”L, 1 LP, 1 Internal LP) |
| Onboard Storage Controller |
Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Connectivity | 4 10Gbase-T ports; 5 USB 3.0 ports (2 rear, 2 onboard header, 1 Type A); 1 Serial Port |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 24 hot-swap 2.5” drive support; 8 SATA3 + 4 NVMe; Optional 24 SAS3 drive support via AOCs |
| Peripheral Bays | N/A |
| Power Supply | 1000W Titanium Level (96%+)Power Supply |
| Cooling System | 4 heavy duty fans w/ Optimal Fan Speed Control, 1 Air Shroud |
| Form Factor | 2U Rackmount 437 x 89 x 705.3mm (17.2” x 3.5” x 27.76”) |
SYS-2048U-RTR4
2U Ultra, 3.5” Drives, NVMe, Titanium Level Power
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s |
|---|---|
| Key Applications | • Virtualization • Cloud Computing • High End Enterprise Server |
| Outstanding Features | • Flexible LAN options • 24 DIMM slots • 12x 3.5” hot-swap drive bays • 4-port NVMe SSD Support • 160W CPU support • Titanium Level Power Supply • 2 SATA DOM support with embedded power |
| Serverboard | SUPER● ® X10DRU-i+ |
| Chipset | Intel® C612 Chipset |
| System Memory(Max.)* | Up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 24 DIMM slots |
| Expansion Slots | 7 PCI-E 3.0 x8 (5 FH, 10.5”L, 1 LP, 1 Internal LP) |
| Onboard Storage Controller |
Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Connectivity | 2 10Gbase-T Ethernet; 5 USB 3.0 ports (2 rear, 2 onboard header, 1 Type A); 1 Serial Port |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 12 hot-swap 3.5" drive bays support; 8 SATA3 + 4 NVMe; Optional 12 SAS3 drive support via AOCs |
| Peripheral Bays | N/A |
| Power Supply | 1000W Titanium Level (96%+) Power Supply |
| Cooling System | 4 heavy duty fans w/ Optimal Fan Speed Control, 1 Air Shroud |
| Form Factor | 2U Rackmount 437 x 89 x 723.3mm (17.2” x 3.5” x 28.46”) |
