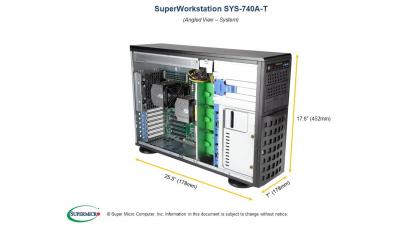

SYS-740A-T
DP Workstation, 2-GPU Supported
| Processor Support | 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported TDP up to 270W; 3 UPI |
|---|---|
| Key Applications | • Rendering • CAD • Multimedia/Digital Content creation • Engineering/scientific research |
| Outstanding Features | • Supports up to two double width active GPUs • Front accessible storage configurable up to 8x 2.5/3.5” hot-swap drive bays • Redundant Power Supplies |
| Serverboard | SUPER● ® X12DAI-N6 |
| Chipset | Intel® C621A |
| System Memory (Max.) | 16 DIMM slots Up to 4 TB ECC RDIMM, DDR4-3200MHz Up to 4 TB ECC LRDIMM, DDR4-3200MHz Up to 512GB Intel® DCPMM, DDR4-3200MHz |
| Expansion Slots | 5 PCI-E 4.0 x16 FHFL slot(s) PCI-E 4.0 x8 FHHL slot(s) |
| Onboard Storage Controller |
Intel® SATA |
| Connectivity | 2x 1GbE port(s) |
| VGA/Audio | 1 VGA port |
| Management | SuperDoctor® 5; Watch Dog; NMI; SUM; KVM with dedicated LAN; SPM; SSM; IPMI 2.0; Redfish API |
| Drive Bays | 8x 3.5” hot-swap SATA (SAS/NVMe optional) drive bays; Optional RAID support via RAID controller AOC |
| Peripheral Bays | 3x 5.25”” (optional) |
| Power Supply | Redundant 1200W Titanium level (96%) |
| Cooling System | 2x 8cm heavy duty fan(s) |
| Form Factor | 4U Tower rackmount Enclosure: 178 x 452 x 647mm (7” x 17.8” x 25.5”) Package: 356 x 625 x 795mm (14” x 24.6” x 31.3”) |

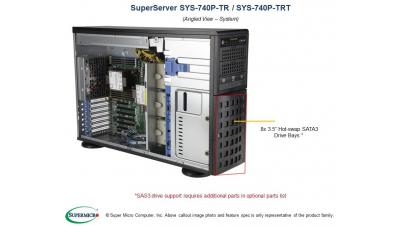

SYS-740P-TR
X12 Mainstream
| Processor Support | 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported TDP up to 270W; up to 11.2GT/s |
|---|---|
| Key Applications | • Office environment • Model analysis • Application and data serving • Compute Intensive Applications • Enterprise Server |
| Outstanding Features | • Cost-effective all-purpose tower server |
| Serverboard | SUPER● ® X12DPi-N6 |
| Chipset | Intel® C621A |
| System Memory (Max.) | 18 DIMM slots UP to 4TB: DRAM UP to 4TB: PMem Intel® Optane™ persistent memory 200 series |
| Expansion Slots | 4 PCI-E 4.0 x16 Full-height slot(s); 2 PCI-E 4.0 x8 Full-height slot(s) |
| Onboard Storage Controller |
Intel® C621A |
| Connectivity | 2x 1GbE port(s) |
| VGA/Audio | 1 VGA port |
| Management | Intel® Node Manager; KVM with dedicated LAN; NMI; SPM; SSM; SUM;Redfish API; IPMI2.0 |
| Drive Bays | 8x 3.5” hot-swap drive bays; 2x 2.5” NVMe hybrid; 2.5” NVMe fixed drives optional |
| Peripheral Bays | 1x 5.25” DVD (optional) |
| Power Supply | Redundant 1200W Titanium level (96%) |
| Cooling System | 3 (middle) and 2 (rear) heavy duty fans |
| Form Factor | Tower/4U rackmount Enclosure: 178 x 452 x 648mm (7” x 17.8” x 25.5”) |

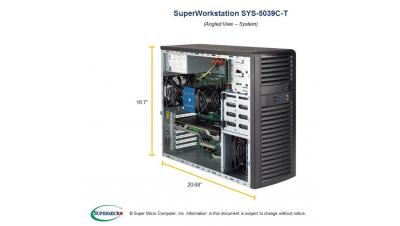

SYS-5039C-T
X11 SuperWorkstation, Performance Workstation, Rich I/O and versatile storage options
| Processor Support | Intel® Xeon® E processor (Coffee Lake-S) Workstation, 8th Gen Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium® Processors Single Socket H4 (LGA 1151), supports up to 95W TDP |
|---|---|
| Key Applications | • 2D/3D and CAD Applications • Digital Content Creation • 3D Animations |
| Outstanding Features | • Cost effective UP platform • Versatile Storage with M.2, U.2 and SATA support • Fast I/O with 2 GbE and USB 3.1 Gen 2 |
| Serverboard | SUPER● ® X11SCA |
| Chipset | Intel® C246 chipset |
| System Memory (Max.)* | Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots |
| Expansion Slots | 2 PCI-E 3.0 x16 running at NA/16 or 8/8 1 PCI-E 3.0 x4 slot 1 PCI-E 3.0 x1 slot 1 PCI 32bit 5V slot |
| Onboard Storage Controller |
Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10; |
| Connectivity | Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller |
| VGA/Audio | 1 HDMI 2.0a port, 1 DVI-D port, 1 DP 1.2 (DisplayPort) port |
| Management | AMT, SuperDoctor® 5, vPro, Watchdog |
| Drive Bays | 4 Fixed 3.5” drive bays Optional 4 internal 2.5” drive bays |
| Peripheral Bays | 2 external 5.25” drive bays 1 3.5” external device bay |
| Power Supply | 500W 80PLUS Bronze PS/2 Power Supply |
| Cooling System | 1 12cm rear exhaust fan Optional 12cm front cooling fan |
| Form Factor | Mid-Tower 7.6” (193mm) x 16.7” (424mm) x 20.68” (525mm) |
