제품소개 PRODUCT

    MicroBlade

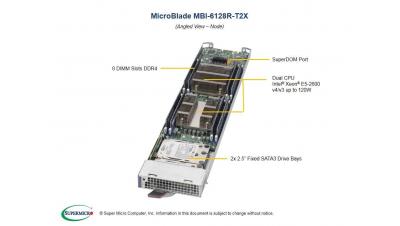

    MBI-6128R- T2X

    Single-node 2S with Dual 10G Ethernet

    Server Nodes/42U Rack 196
    Processor Dual Intel® Xeon® processor E5-2600 v4/v3 product families
    with QPI up to 9.6GT/s
    Chipset Intel® C612
    Memory Support 8 DDR4-2400 VLP DIMM slots
    Max Memory 256GB
    Expansion & Drive Bays • 2x 2.5" SATA3 SSD/HDD
    • 1x SuperDOM Port
    Storage RAID Intel® PCH SATA3 RAID 0,1
    Ethernet Interface Dual-port 10G
    Management • IPMI 2.0
    • KVM over IP
    • Virtual Media over LAN
    • Supermicro RSD
    LED Indicators • Power LED
    • UID / KVM LED
    • Network Activity LED
    • Fault LED
    Dimensions (H x W x D) 1.2" (30.48mm) x 4.94" (125.48mm) x 23.2" (589.28mm)
    Chassis 6U
    • MBE-628E-416
    • MBE-628E-816
    • MBE-628EB-422
    • MBE-628EB-822
    • MBE-628E-420
    • MBE-628E-820(D)
    • MBE-628EB-622
    3U
    • MBE-314E-420(D)
    • MBE-314E-416
    • MBE-314E-220(D)

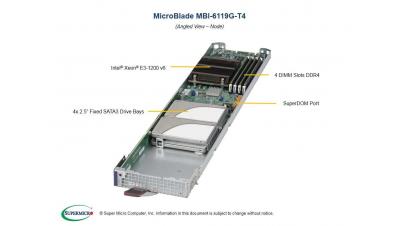

    MBI-6119G-T4

    Single-node 1S with 4 SATA3

    Server Nodes/42U Rack 196
    Processor Intel® Xeon® processor E3-1200 v6/v5 product families
    Chipset Intel® C236
    Memory Support 4 DDR4-2400 VLP DIMM slots
    Max Memory 64GB
    Expansion & Drive Bays • 2x 2.5" SATA3 HDD or 4x 2.5" SATA3 SSD
    • 2x SuperDOM Port
    Storage RAID Intel® PCH SATA3 RAID 0,1,5,10
    Ethernet Interface Dual-port Gigabit
    Management IPMI 2.0, KVM over IP, Virtual Media over LAN
    LED Indicators • Power LED
    • Fault LED
    • Network Activity LED
    • UID / KVM LED
    Dimensions (H x W x D) 1.2" (30.48mm) x 4.94" (125.48mm) x 23.2" (589.28mm)
    Chassis 6U
    • MBE-628E-416
    • MBE-628E-816
    • MBE-628EB-422
    • MBE-628EB-822
    • MBE-628E-420
    • MBE-628E-820(D)
    • MBE-628EB-622
    3U
    • MBE-314E-420(D)
    • MBE-314E-416
    • MBE-314E-220(D)
    MBE-628E-820

    6U Enclosure

    Processor Blade Up to 28 hot-pluggable blade servers
    Node Support Intel® Xeon® processor based blades
    Networking Up to 2 hot-pluggable 10G/1G Ethernet switches
    Management Up to 2 hot-pluggable management modules providing remote KVM and IPMI 2.0 functionalities
    Power Supply 8 hot-pluggable 2000W; (D) for DC power
    Cooling Design 8 cooling fans
    LED Power LED, Fault LED
    Rack Unit 6U
    Dimensions (H x W x D) 10.43” (265mm) x 17.67” (449mm) x 36.10” (917mm)
