SYS-1019C-HTN2
IoT/Embedded, Intel® Gen 8th Coffee Lake-S, Compact 1U Embedded System
| Processor Support | Intel® Xeon® E processor, 8th Generation Intel® Core™ i3/Pentium®/Celeron® Processor(Coffee Lake-S). Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 80W TDP |
|---|---|
| Key Applications | • Digital Signage • DVR/NVR • POS • Office Server • Network Security • Security Appliance and Video Surveillance |
| Outstanding Features | • Coffee Lake-S, Xeon E-2100, 8th Gen Core i3, Pentium, Celeron • Remote management via dedicated IPMI BMC • 4 USB 3.1 • 2 DP, DVI-I, VGA, Audio • PCIe 3.0 x16, |
| Serverboard | SUPER● ® X11SCZ-F |
| Chipset | Intel® C246 chipset |
| System Memory (Max.)* | Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots |
| Expansion Slots | PCI-E 3.0 x 16 half height half length expansion slot; M.2 (M key, 22110/80, PCI-E3.0 x4/SATA) |
| Onboard Storage Controller |
Intel® C246 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1; |
| Connectivity | Dual GbE LAN, 1 dedicate IPMI, 4 USB3.1 (3 TYPE A and 1 TYPE C) |
| VGA/Audio | VGA via BMC |
| Management | IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor® 5, Watchdog |
| Drive Bays | 2x 2.5” hot swap HDD (SATA3) |
| Peripheral Bays | N/A |
| Power Supply | 200W Low Noise AC-DC power supply with PFC, Gold Certified |
| Cooling System | 4x 40x28mm châssis fan 4-PIN PWM FAN |
| Form Factor | 437 x 43 x 287mm (17.2” x 1.7” x 11.3”) |

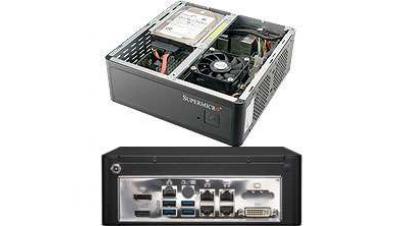

SYS-1019S-MP
IoT/Embedded, Video Transcending and Streaming, Compact Box
| Processor Support | Intel® Xeon® Processor E3-1515M v5 (Skylake-H), Single socket FCBGA 1440, 4-Core, 8 Threads, 45W |
|---|---|
| Key Applications | • Digital Signage • Kiosk, Interactive information system • Media Streaming server |
| Outstanding Features | • Intel Iris Pro Graphics P580 with 128MB of on-Package cache (eDRAM) for high performance graphics • HDMI, Display Port, DVI-I, 3 independent displays |
| Serverboard | SUPER● ® X11SSV-M4 |
| Chipset | Intel® CM236 chipset |
| System Memory(Max.)* | Up to 32GB ECC/Non-ECC Unbuffered SO-DIMM DDR4 2133MHz; 2 DIMM slots |
| Expansion Slots | 1 Mini-PCIe (mSATA support), 1 M.2 PCIe 3.0 x4 (SATA support), M Key 2242/80 |
| Onboard Storage Controller |
Intel® CM236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10; Intel RSTe |
| Connectivity | 4x 1GbE LAN, 4x USB 3.0 |
| VGA/Audio | 1 HDMI2.0, 1 DP1.2, 1 DVI-I,Intel Iris Pro Graphics P580,3 independent displays |
| Management | vPro AMT |
| Drive Bays | 1 internal 2.5” Hard Drive |
| Peripheral Bays | N/A |
| Power Supply | 84W DC power adapter |
| Cooling System | 2x 6cm cooling fan |
| Form Factor | Compact Box; Enclosure: 195 x 68 x 195mm (7.68” x 2.68” x 7.68”) Package: 381 x 276 x 142mm (15” x 10.87” x 5.59”) |

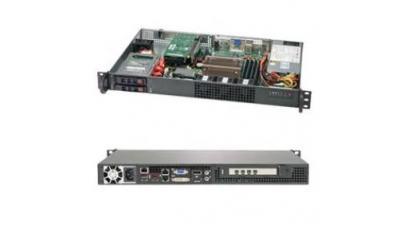

SYS-5019A-FTN4
IoT/Embedded, Intel® Atom® Processor Denverton C3758, SoC, 8 Cores, Front I/O, Short-Depth Server
| Processor Support | Intel® Atom™ Processor Denverton C3758, SoC, 8 Cores, 25W |
|---|---|
| Key Applications | • Network Security Appliance • Edge Computing Server • Virtualization Server |
| Outstanding Features | • Intel® Quick Assist Technology • 256GB DDR4 ECC RDIMM/64GB ECC UDIMM |
| Serverboard | SUPER● ® A2SDi-8C-HLN4F |
| Chipset | System on Chip |
| System Memory(Max.)* | Up to 256GB Registered ECC DDR4-2400MHz or 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots |
| Expansion Slots | 1 PCI-E 3.0 x4, 1 x M.2 (M key for SSD, 2242/80, PCIe3.0 x2 or SATA3) |
| Onboard Storage Controller |
SoC controller for 4 SATA3 (6 Gbps) ports |
| Connectivity | 4x 1GbE LAN, 1x dedicated IPMI LAN, 2x USB 2.0 |
| VGA/Audio | VGA via BMC |
| Management | IPMI 2.0 |
| Drive Bays | 2x 3.5” or 4x 2.5” HDD |
| Peripheral Bays | N/A |
| Power Supply | 200W Low Noise AC-DC power supply with PFC |
| Cooling System | 2x 40x28mm 4-PIN PWM Fan (FAN-0065L4, 13K RPM), Optional 1x 40x28mm 4-PIN PWM Fan |
| Form Factor | 1U Short Depth Rackmount; Enclosure: 437 x 43 x 249mm (17.2” x 1.7” x 9.8”) Package: 655 x 155 x 465mm (25.8” x 6.1” x 18.3”) |
