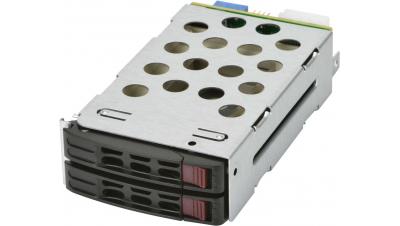

MCP-220-82616-0N
SAS 3.0/SATA 3.0
| Occupancy | 1x rear drive bay |
|---|---|
| Capacity | 2x 2.5" hot-swap SAS3/SATA3 hard drives |
| Expander Card | N/A |
| Cooling Subsystem | N/A |
| System Monitoring | • Monitoring drive activity, rebuild or failure • Jumper settings for various configurations • 12G support with optional CBL-SAST-0699 |
| Dimensions | 82616: 3.26”x 1.36”x 6.26” (83x35x159mm) 83608: 3.2”x 1.6”x 6.1” (81x41x155mm) 84610: 6.0” x 0.76” x 6.7” (152x20x170mm) |
| Gross Weight | 1.5 lbs |

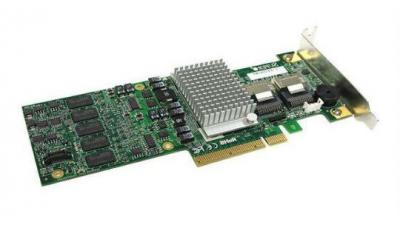

AOC-SAS2LP-H8iR
6Gbps
| Type | Standard |
|---|---|
| Controller/IOP | BroadcomSAS 2108 |
| SAS Port | 8 ports, 6Gbps per port, 8 Internal, Low Profile, 240 SATA/SAS Drives |
| RAID | RAID 0,1,5,6,10,50,60 |
| Onboard Cache | 512MB DDR2 on-card cache w/ Optional Battery Backup Unit: BTR-0023LBroadcom00264 |

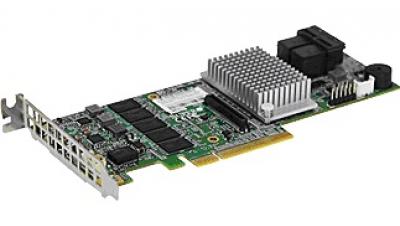

AOC-S3108L-H8iR
SAS3
| Type | Standard |
|---|---|
| Controller/IOP | BroadcomSAS 3108 |
| SAS Port | 8 ports, 12Gbps per port, 8 Internal, Low Profile, 240 SATA/SAS Drives |
| RAID | RAID 0,1,5,6,10,50,60 |
| Onboard Cache | 2GB DDR3 on-card cache Optional SuperCap: BTR-TFM8GBroadcomCVM02. Installation kit PN =MCP-240-00127-0N |
