SYS-6039P-TXRT
X11 Max I/O, 3U 11 PCI-E Slots
| Processor Support | Intel® Xeon® Processor Scalable Family – Skylake |
|---|---|
| Key Applications | • Industrial Server • Surveillance DCR • Flash Array Server • Data Acquisitions • Video and Music Production |
| Outstanding Features | • Up to 11 PCI-E 3.0 slots • 8x Hot-swap 3.5” HDD Bays and 2x 5.25” Drive Bays • 2 SATA DOMs Support with Embedded Power • Redundant (1+1) 980W Platinum level 94+% |
| Serverboard | SUPER● ® X11DPX-T |
| Chipset | Intel® C621 chipset |
| System Memory(Max.)* | Up to 2TB Registered ECC, DDR4-2666MHz in 16 DIMM slots |
| Expansion Slots | 2 PCI-E 3.0 x16 Slots 8 PCI-E 3.0 x8 Slots (6x opend slot, 2 x16 slots support by MUX) 1 PCI-E 3.0 x4 in x8 slot |
| Onboard Storage Controller |
Intel® C621 SATA3 (6Gb/s) controller |
| Connectivity | Dual 10G baseT LAN(X550-AT2) |
| VGA/Audio | 1 VGA, Aspeed AST2500 |
| Management | Intel® Node Manager IPMI2.0 KVM with dedicated LAN SPM SUM SuperDoctor® 5 |
| Drive Bays | 8x 3.5” hot-swap and 2x 5.25” drive bay |
| Peripheral Bays | 1x slim DVD-ROM drive bay, 1x FDD bay, 2x standard 5.25” drive bay |
| Power Supply | Redundant 2 Qty. PWS-982P-1R |
| Cooling System | 3x middle fans & 1x rear exhaust fan |
| Form Factor | 3U Chassis; Enclosure: 437 x 132 x 648mm (17.2” x 5.2” x 25.5”) |

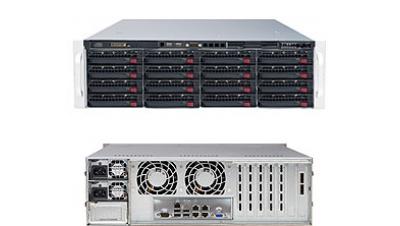

SSG-6039P-E1CR16H
X11 SuperStorage, 3U
| Processor Support | Intel® Xeon® Scalable Processors with UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Corporate Database • Data Center • Database Processing & Storage • Enterprise Server • HPC • iSCSI SAN |
| Outstanding Features | • 2x Optional Onboard NVMe M.2 • 16x 3.5” SAS3/SATA3 drive bays • 205W CPU support • 16 DIMM support • Dual 10G BaseT • Dual JBOD Expansion Ports • 1200W Titanium Level high-efficiency power supply • Broadcom® 3108 SAS3 HW RAID controller |
| Serverboard | SUPER● ® X11DPH-T |
| Chipset | Intel® C624 chipset |
| System Memory(Max.)* | Up to 2TB 3DS ECC, DDR4-2666MHz in 16 DIMM slots |
| Expansion Slots | 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8. Slot 2 & 3 occupied by controller and JBOD Expansion Port |
| Storage Controller | Broadcom® 3108 SAS3 add-on controller card |
| Connectivity | Dual LAN with 10GBase-T with Intel® X557 |
| VGA/Audio | 1 VGA |
| Management | Intel® Node Manager, IPMI2.0, NMI, SPM, SUM, SuperDoctor® 5, Watchdog |
| Drive Bays | 16x 3.5” hot-swap SAS3/SATA3 drive bays |
| Peripheral Bays | 2x 2.5” rear hot-swap drive bays |
| Power Supply | 1200W Titanium Level high-efficiency power supply |
| Cooling System | 3x 8cm hot-swap redundant PWM cooling fans. 2x 80mm rear hot-swap exhaust PWM fan |
| Form Factor | 3U 17.2” (437mm) x 5.2” (132mm) x 25.5” (647mm) |

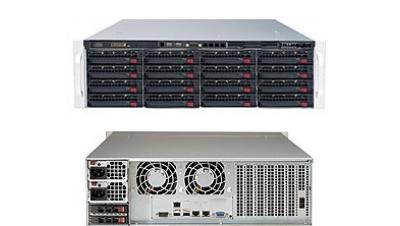

SSG-6038R-E1CR16N
3U Storage, X10 HW SAS3 controller, Storage Expandable
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s |
|---|---|
| Key Applications | • Corporate Database • Data Center • Database Processing & Storage • Enterprise Server • HPC • iSCSI SAN |
| Outstanding Features | • Broadcom® 3108 SAS3 HW RAID controller • 16x 3.5” SAS3/SATA3 drive bays • 130W CPU support • 24 DIMM slots • 4 x 10G BaseT • Dual JBOD Expansion Ports • 920W Platinum Level high efficiency power supply |
| Serverboard | SUPER● ® X10DRi-T4+ |
| Chipset | Intel® C612 chipset |
| System Memory(Max.)* | Up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 24 DIMM slots |
| Expansion Slots | 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) Slot 3 &4 occupied by controller and JBOD Expansion Port |
| Onboard Storage Controller |
Broadcom® 3108 SAS3 HW RAID controller |
| Connectivity | Quad LAN with Intel® X540 10GBase-T Ethernet Controller |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 16x 3.5” hot-swap SAS3/SATA3 drive bay; 2x 2.5” optional rear hot-swap drive bay |
| Peripheral Bays | 1 optional Slim DVD-ROM bay |
| Power Supply | 920W Redundant Platinum Level high-efficiency power supplies with I2C & PMBus |
| Cooling System | 3x 8cm hot-swap redundant PWM cooling fans. 2x 80mm rear hot-swap exhaust PWM fan |
| Form Factor | 3U Rackmount 437 x 132 x 647mm (17.2” x 5.2” x 25.5”) |
