제품소개 PRODUCT

    Ultra

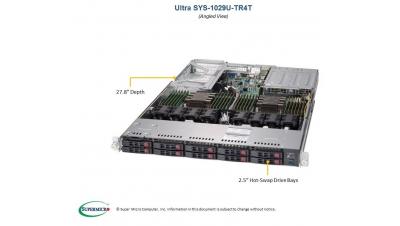

    SYS-1029U-TR4

    1U X11 Ultra, 10x 2.5” Drive Bays

    Processor Support 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
    Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
    Key Applications • Virtualization
    • Cloud Computing
    • High End Enterprise Server
    Outstanding Features • 24 DIMM sockets
    • 4 PCI-E Add-on cards
    • 205W CPU support
    • Platinum Level Power Supply
    • 2 SATA DOM support with embedded power
    Serverboard SUPER● ® X11DPU
    Chipset Intel® C621 chipset
    System Memory (Max.)* Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots;
    Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
    Expansion Slots 2 PCI-E 3.0 x16 (FH, 10.5”L); 2 PCI-E 3.0 x8 (1 LP, 1 Internal LP)
    Onboard Storage
    Controller
    Intel® C621 SATA controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10;
    Connectivity 4 Gigabit Ethernet; 2 VGA ports (1 rear, 1 onboard) 5 USB 3.0
    ports (2 rear, 2 front, 1 Type A); 1 Serial Port
    VGA/Audio Aspeed AST2500 BMC
    Management Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI,
    SPM, SSM, SUM, SuperDoctor® 5
    Drive Bays 10 hot-swap 2.5” drive support
    Peripheral Bays N/A
    Power Supply 750W Redundant Platinum Level Power Supply
    Cooling System 8 heavy duty fans w/ Optimal Fan Speed Control, 1 Air Shroud
    Form Factor 437 x 43 x 707mm (17.2” x 1.7” x 27.82”)
    SYS-1029UX-LL3-S16

    Low Latency

    Processor Support 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
    Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
    Key Applications • Financial Analysis
    • Business Critical Applications
    • Enterprise Server
    Outstanding Features • Hyper-Speed Hardware Acceleration
    • Low Latency & Jitter Optimized
    • 8x 2.5” SAS/SATA drive bays
    • 2x 2.5” NVMe drive bay support
    • Optimized cooling
    • Plantium level redundant power supply
    Serverboard SUPER● ® X11DPU-XLL
    Chipset Intel C621 Chipset
    System Memory (Max.)* Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz;
    Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz,
    in 16 DIMM slots;
    Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
    Expansion Slots 2 PCI-E 3.0 x16(Full Height, 10.5” Length)
    1 PCI-E 3.0 x8 (Low Profile) 1 PCI-E 3.0 x8(Internal SAS3 integrated 3108)
    Onboard Storage
    Controller
    Broadcom® 3108 controller for 8 SAS3 ports
    Connectivity 4x Gigabit Ethernet ports via AOC-UR-I4G
    VGA/Audio 1 VGA, 1 Aspeed AST2400 BMC
    Management Intel® Node Manager; IPMI2.0; KVM with dedicated LAN; NMI; SPM; SUM; SuperDoctor® 5; Watchdog;
    Drive Bays 8x SATA/SAS3 Hot-swap 2.5” HDD bays (SAS3 3108) 2x NVME Hot-swap 2.5” HDD bays
    Peripheral Bays N/A
    Power Supply 750W High-efficiency (Platinum level) digital power supply
    Cooling System 8 heavy duty fans w/ Optimal Fan Speed Control
    Form Factor 437 x 43 x 706mm (17.2” x 1.7” x 27.8”)
    SYS-6019U-TN4RT

    1U X11 Ultra, 4x 3.5” NVMe Drive Bays

    Processor Support 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
    Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
    Key Applications • Virtualization
    • Cloud Computing
    • High End Enterprise Server
    Outstanding Features • 4 3.5” drive bays
    • 24 DIMM sockets
    • 4 PCI-E Add-on cards
    • 205W CPU support
    • Platinum Level Power Supply
    • 2 SATA DOM support with embedded power
    Serverboard SUPER● ® X11DPU
    Chipset Intel® C621 chipset
    System Memory (Max.)* Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots;
    Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
    Expansion Slots 2 PCI-E 3.0 x16 (FH, 10.5”L); 2 PCI-E 3.0 x8 (1 LP, 1 Internal LP)
    Onboard Storage
    Controller
    Intel® C621 SATA3 (6Gb/s) controller
    Connectivity 2x 10GBase-T Ethernet ports; 2 VGA ports (1 rear, 1 onboard)
    3 USB 3.0 ports (2 rear, 1 Type A); 1 Serial Port
    VGA/Audio Aspeed AST2500 BMC
    Management Intel® Node Manager; Redfish API; IPMI2.0; KVM with dedicated LAN; NMI; SPM; SSM; SUM; SuperDoctor® 5;
    Drive Bays 4 hot-swap 3.5” drive support; 4 NVMe/SATA3 ports
    Peripheral Bays N/A
    Power Supply Redundant 750W Platinum Level Power Supply
    Cooling System 8 heavy duty fans w/ Optimal Fan Speed Control, 1 Air Shroud
    Form Factor 437 x 43 x 737mm (17.2” x 1.7” x 29”)
