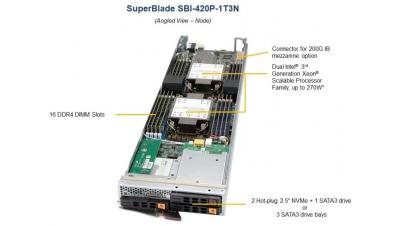

SBI-420P-1T3N
8U/20-Blade w/ 3 SATA or 2 NVMe
| Processor Support | 3rd Gen Intel® Xeon® Scalable processors; Dual Socket supported TDP up to 220W; 3 UPI |
|---|---|
| Key Applications | • HPC, Hybrid Cloud, EDA, Virtualization, Health, Financial Services |
| Outstanding Features | • Air cooling • Advanced networking (InfiniBand, OmniPath) |
| Serverboard | SUPER● ® B12DPT-6 |
| Chipset | Intel® C621A |
| System Memory (Max.) | 16 DIMM slots Up to 4 TB ECC RDIMM, DDR4-3200MHz Up to 4 TB ECC LRDIMM, DDR4-3200MHz Up to 2 TB Intel® DCPMM, DDR4-3200MHz |
| Expansion Slots | 1 PCI-E 4.0 x16 slot for mezzanine option |
| Onboard Storage Controller |
Intel® PCH 3.0 SATA Controller |
| Connectivity | Dual-port 25GbE LOM Mezzanine option for 2x25GbE, 200G/100G InfiniBand |
| VGA/Audio | One VGA connector and one COM port on KVM dongle |
| Management | Redundant Chassis Management Modules, Blade Network Manager, Open Industry Standard IPMI, Redfish APIs |
| Drive Bays | 1x M.2 NVMe 2x U.2 NVMe/SATA and 1x SATA Optional mezzanine 4x M.2 NVMe |
| Peripheral Bays | N/A |
| Power Supply | Up to 8x 2200W Titanium Level power supplies |
| Cooling System | Up to 8x fans 3x System fan modules (optional) |
| Form Factor | 8U Enclosure Up to 20x half-height blades |
SBE-820C
8U Enclosure
| Processor Blade | • Up to 20 hot-pluggable half-height 2-socket blade servers • Up to 10 hot-pluggable full-height 4-socket blade servers • Mixed blade servers in a single enclosure |
|---|---|
| LED | Power LED, Fault LED |
| 100G Switch | Single 100G EDR InfiniBand or Intel® Omni-Path Architecture switch with add-on card |
| 10G Ethernet Switch | Up to 2 hot-pluggable 10G Ethernet switches |
| Management | Single CMM for remote system management with software |
| Available Models | SBE-820C-822:Enclosure with 8 hot-pluggable 2200W Titanium(96% efficiency) power supplies SBE-820C-622:Enclosure with 6 hot-pluggable 2200W Titanium(96% efficiency) power supplies SBE-820C-422:Enclosure with 4 hot-pluggable 2200W Titanium(96% efficiency) power supplies SBE-820C-820D:8 hot-pluggable 2000W DC power supplies SBE-820C-420D:4 hot-pluggable 2000W DC power supplies SBE-820CB-422:4 hot-pluggable 2200W Titanium(96% efficiency) power supplies + 4 hot-pluggable 1200W BBP® module |
| Rack Unit | 8U |
| Dimensions (H x W x D) | 14” x 17.6” x 32” |

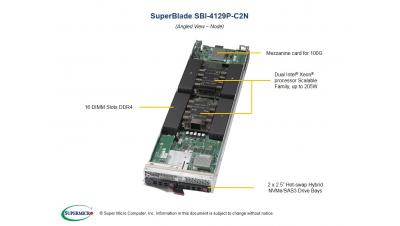

SBI-4129P-C2N
2-socket with Optional 100G EDR/OPA and NVMe
| Server Nodes/8U | 20 |
|---|---|
| Processor | Dual Intel® Xeon® processors Scalable family with UPI up to 10.4 GT/s |
| Chipset | Intel® C620 series |
| Memory Support | 16 DDR4-2666MHz ECC 3DS LRDIMM/RDIMM slots |
| Max Memory | 2TB |
| Expansion & Drive Bays | • 2 hot-plug 2.5” NVMe/SAS3/SATA3 drive bays • 1 M.2 NVMe/SATA slots • 4 M.2 NVMe/SATA via mezzanine card |
| Storage RAID | Broadcom® 3108 RAID 0,1 via mezzanine card |
| InfiniBand / Intel® OPA | 100G EDR InfiniBand / Intel® Omni-Path (Mezzanine card) |
| Ethernet Interface | • Dual-port 10G • Dual-port 25G (Mezzanine card) |
| Management | • IPMI 2.0 • KVM over IP • Virtual Media over LAN • Supermicro RSD |
| LED Indicators | • Fault LED • Network Activity LED • Power LED • UID / KVM LED |
| Dimensions (H x W x D) | 1.75” x 6.5” x 23.5” |
| Chassis | 8U • SBE-820C/J-422 • SBE-820C/J-622 • SBE-820C/J-822 • SBE-820CB/JB-422 |
