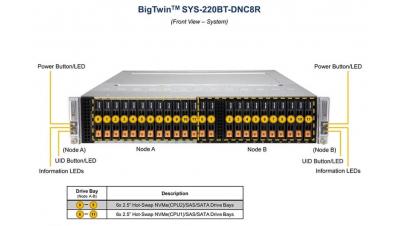

SYS-220BT-DNC8R
12x 2.5” drives/node x 2 Nodes
| Processor Support | 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA 4189 (Socket P+) supported TDP up to 270W; |
|---|---|
| Key Applications | • Hyperconverged Infrastructure • High-Performance Ceph; Software-Defined Storage |
| Outstanding Features | • Tool-less support for swapping AOC cards • Supports NVMe/SATA/SAS storage devices • Liquid Cooling Support • HW Boot Controller for NVMe M.2 drives • Balanced IO performance for up to 12 NVMe Gen4 drives • 3 low-profile PCI-E 4.0 slots • 20 Memory slots (16 DIMM + 4 Intel® Optane™ Persistent Memory) • 2 Hot-Swap Nodes in 2U, Shared Power and Dedicated Cooling Per Node • 1 AIOM card support (PCI-E 4.0) |
| Serverboard | SUPER●® X12DPT-B6 |
| Chipset | Intel® C621A |
| System Memory (Max.) | 20 DIMM slots (16 DRAM + 4 PMem) UP to 4TB: 16x 256GB DRAM UP to 6TB: 8x 256GB DRAM and 8x 512GB Intel® Optane™ Persistent Memory |
| Expansion Slots | M.2 slot(s) PCI-E 4.0 x16 LP slot(s) PCI-E 4.0 x8 LP slot(s) |
| Onboard Storage Controller |
Intel® SATA Broadcom® 3816 |
| Connectivity | via AIOM |
| VGA/Audio | 1 onboard VGA port |
| Management | Intel® Node Manager; IPMI 2.0; KVM with dedicated LAN; SuperDoctor® 5; Watch Dog; SUM; SPM; SSM; SuperCloud Composer |
| Drive Bays | 12x 2.5” hot-swap NVMe/SATA/SAS drive bays; 12x 2.5” NVMe hybrid; Optional HBA support via SAS3816 AOC |
| Peripheral Bays | None |
| Power Supply | Redundant 2200W Titanium level (96%) |
| Cooling System | 4x 8cm heavy duty fan(s) |
| Form Factor | 2U Rackmount Enclosure: 449 x 88 x 730mm (17.68” x 3.47” x 28.75”) Package: 626 x 248 x 1150mm (24.65” x 9.76” x 45.28”) |

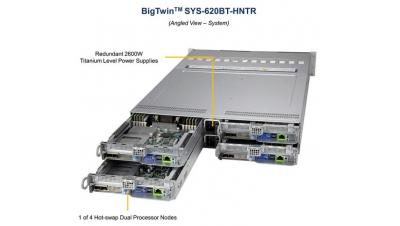

SYS-620BT-HNTR
3x 3.5” drives/node x 4 Nodes
| Processor Support | 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA 4189 (Socket P+) supported TDP up to 185W; |
|---|---|
| Key Applications | • Warm Storage • Hyperconverged Infrastructure |
| Outstanding Features | • Tool-less support for swapping AOC cards • Liquid Cooling Support • HW Boot Controller for NVMe M.2 drives • 4 Hot-Swap Nodes in 2U, Shared Power and Cooling Design • 20 Memory slots (16 DIMM + 4 Intel® Optane™ Persistent Memory) • 2 low-profile PCI-E 4.0 slots • 1 AIOM card support (PCI-E 4.0) |
| Serverboard | SUPER●® X12DPT-B6 |
| Chipset | Intel® C621A |
| System Memory (Max.) | 20 DIMM slots (16 DRAM + 4 PMem) UP to 4TB: 16x 256GB DRAM UP to 6TB: 8x 256GB DRAM and 8x 512GB Intel® Optane™ Persistent Memory |
| Expansion Slots | M.2 slot(s) 2 PCI-E 4.0 x16 LP slot(s) |
| Onboard Storage Controller |
Intel® SATA |
| Connectivity | via AIOM |
| VGA/Audio | 1 onboard VGA port |
| Management | Intel® Node Manager; IPMI 2.0; KVM with dedicated LAN; SuperDoctor® 5; Watch Dog; SUM; SPM; SSM; SuperCloud Composer |
| Drive Bays | 3x 3.5” hot-swap NVMe/SATA drive bays; 3x 3.5” NVMe hybrid; 3x 2.5” NVMe hybrid; Optional RAID support via Intel® PCH |
| Peripheral Bays | None |
| Power Supply | Redundant 2600W Titanium level (96%) |
| Cooling System | 4x 8cm heavy duty fan(s) |
| Form Factor | 2U Rackmount Enclosure: 449 x 88 x 774mm (17.68” x 3.47” x 30.5”) Package: 626 x 248 x 1150mm (24.65” x 9.76” x 45.28”) |

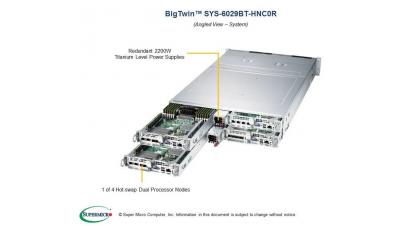

SYS-6029BT-HNC0R
X11 BigTwin, Quad DP Nodes, 12 Hybrid SAS3/NVMe Drive Bays
| Processor Support | 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Hyperscale and Hyperconverged Solutions • Compute Intensive Application • Enterprise Server • Data Center • HPC |
| Outstanding Features | • 4 Nodes in 2U • 24 DIMMs per node • NVMe Support • 2 M.2 SATA3 or NVMe support • 2 Low -profile PCI-E 3.0 x16 slot • 1 SIOM card support |
| Serverboard | SUPER● ® X11DPT-B |
| Chipset | Intel® C621 chipset |
| System Memory (Max.)* | Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots; Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only); |
| Expansion Slots | 2 PCI-E 3.0 x16(LP), 1 SIOM card support Note: Must bundle with Network Card |
| Onboard Storage Controller |
Broadcom 3008 SAS3 (12Gbps) controller; IT mode |
| Connectivity | SIOM Networking Card For Flexible Networking Options |
| VGA/Audio | Aspeed AST2500 BMC |
| Management | Intel® Node Manager; IPMI2.0; KVM with dedicated LAN; SPM; SSM; SUM; SuperDoctor® 5; Watchdog |
| Drive Bays | 3 Hot-swap 3.5" NVMe/SAS drive bays per node |
| Peripheral Bays | N/A |
| Power Supply | Redundant 2200W Titanium Level high-efficiency power supplies with I²C&PMbus |
| Cooling System | 4x 8cm heavy duty PWM fans with air shroud |
| Form Factor | 447 x 88 x 765mm (17.6” x 3.47” x 30.11”) |
