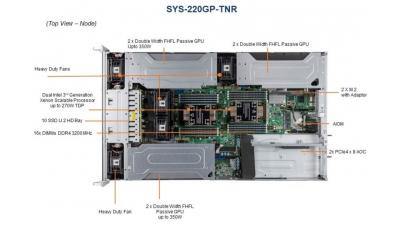

SYS-220GP-TNR
X12 GPU, 2U 6-GPU
| Processor Support | 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported TDP up to 270W; 3 UPI up to 11.2GT/s |
|---|---|
| Key Applications | • VDI • AI/Deep Learning • High Performance Computing • Scientific Virtualization |
| Outstanding Features | • Up to 6 double width GPUs • Flexible I/O support: 8 PCI-E Slots & AIOM Support • AIOM / OCP 3.0 Support • 2xM.2 with internal adaptor • 2x Front USB 3.0 |
| Serverboard | SUPER● ® X12DPG-AR |
| Chipset | Intel® C621A |
| System Memory (Max.) | 16 DIMM slots Up to 4TB ECC LRDIMM, DDR4-3200MHz Up to 4TB ECC RDIMM, DDR4-3200MHz |
| Expansion Slots | 6 PCI-E 4.0 x16 FHFL Slots 2 PCI-E 4.0 x8 Slots or 1 PCI-E 4.0 x16 slot |
| Onboard Storage Controller |
Intel® SATA |
| Connectivity | 2x 10GbE RJ45 port(s) via AIOM |
| VGA/Audio | 1 VGA port |
| Management | Intel® Node Manager; IPMI 2.0; KVM with dedicated LAN; NMI; SUM; SPM; SSM |
| Drive Bays | 10x 2.5” hot-swap NVMe/SATA/SAS drive bays; 2x 2.5” NVMe dedicated; |
| Peripheral Bays | None |
| Power Supply | Redundant 2600W Titanium level (96%) |
| Cooling System | 5 heavy duty fan(s) |
| Form Factor | 2U Rackmount Enclosure: 437 x 89 x 787mm (17.2” x 3.5” x 31”) Package: 279.4 x 673.1 x 1130.3mm (26.5” x 11” x 44.5”) |

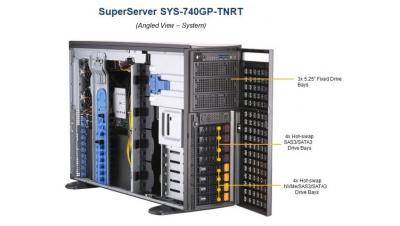

SYS-740GP-TNRT
X12 GPU, 4U 4-GPU
| Processor Support | 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported TDP up to 270W; 3 UPI up to 11.2GT/s |
|---|---|
| Key Applications | • Rendering • AI/Deep Learning • High Performance Computing • Scientific Virtualization |
| Outstanding Features | • Up to 4 Double Width GPUs • Flexible I/O support: 7 PCI-E slots • Flexible GPU Support: Active & Passive GPUs • 2 SATA / NVMe M.2 |
| Serverboard | SUPER● ® X12DPG-QT |
| Chipset | Intel® C621A |
| System Memory (Max.) | 16 DIMM slots Up to 4TB ECC LRDIMM, DDR4-3200MHz |
| Expansion Slots | 6 PCI-E 4.0 X16 FHFL Slots, 1 PCI-E 4.0 X 8 LP Slots |
| Onboard Storage Controller |
Intel® SATA |
| Connectivity | 2x 10GbE RJ45 port(s) |
| VGA/Audio | 1 VGA port |
| Management | Intel® Node Manager; IPMI 2.0; KVM with dedicated LAN; NMI; SUM; SPM; SSM |
| Drive Bays | 8x 3.5” hot-swap NVMe/SATA/SAS Support drive bays; |
| Peripheral Bays | None |
| Power Supply | Redundant 2200W Titanium level (96%) |
| Cooling System | 4 heavy duty fan(s) |
| Form Factor | Tower Enclosure: 437 x 178 x 737mm (17.2” x 7” x 29”) Package: 330.2 x 685.8 x 965.2mm (13” x 27” x 38”) |
SYS-1019GP-TT
X11 UP GPU, 2 GPUs in 1U
| Processor Support | Intel Xeon Scalable Processors with UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • HPC cluster computer nodes |
| Outstanding Features | • 3x 3.5” SAS/SATA drive bays • 512GB DDR3 SDRAM • 1400W Platium Level high-efficiency power supply • IPMI 2.0 + KVM with dedicated LAN |
| Serverboard | SUPER● ® X11SPG-TF |
| Chipset | Intel® C621 chipset |
| System Memory (Max.)* | Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots |
| Expansion Slots | 1 PCI-E 3.0 x16 Center Right Hand Slot, 1 PCI-E 3.0 x16 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot |
| Onboard Storage Controller |
Intel® C621 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10; |
| Connectivity | 2x 10GBase-T ports; Intel® X540 10GBase-T |
| VGA/Audio | Aspeed AST2500 BMC |
| Management | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog |
| Drive Bays | 6x 2.5” hot-swap SAS/SATA drive bay |
| Peripheral Bays | 1x slim DVD-ROM drive bay 1x USB + COM port tray |
| Power Supply | 1400W Platinum Level high-efficiency power supplies with I²C & PMBus |
| Cooling System | 8x 4cm high-performance counter-rotating PWM fans with optimal fan speed control; |
| Form Factor | 1U 17.2” (437mm) x 1.7” (43mm) x 28.5” (724mm) |
