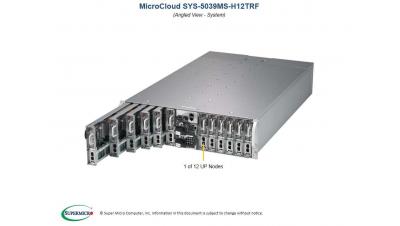

SYS-5039MS-H12TRF
12 UP Nodes, Exceptional performance with SMC , exclusive 16GB VLP DDR4 ECC UDIMM (MEM-DR416L-CV01-EU24 )
| Processor Support | 12 set of Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors product family |
|---|---|
| Key Applications | • Cloud Computing • Web Cache • Web Hosting, VM • Social Networking • Corporate- WINS, DNS, Print, Login |
| Outstanding Features | • Up to 12x hot-pluggable node in 3U chassis • Flexible HDD selection, 2x 3.5” SATA3 or 4x 2.5” SATA3 or 2x 2.5” NVMe plus 2x 2.5” SATA3 or 2x 2.5” NVMe plus 1x 3.5” SATA 3 • Redundant 2000W Titanium Level high-efficiency power supplies • UID LED • Centralized dedicated management switch port |
| Serverboard | SUPER● ® X11SSE-F |
| Chipset | Intel® C236 chipset |
| System Memory(Max.)* | 12 set of up to 64GB Unbuffered ECC Very Low Profile DDR4 2133MHz in 4 DIMM slots |
| Expansion Slots | 12 set of Micro-LP slots (MicroLP upgradable) |
| Onboard Storage Controller |
12 set of Intel® C236 controller for 2 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10 |
| Connectivity | 12 set of Dual LAN Intel® i350 GbE LAN controller |
| VGA/Audio | 12 set of AST2400 VGA |
| Management | Single dedicate management port, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 12 set of 2x 3.5” SATA3 HDD; or 4x 2.5” SATA3; or 2x 2.5” NVMe + 2x 2.5” SATA3; or 2x 2.5” NVMe + 1x 3.5” SATA3 |
| Peripheral Bays | N/A |
| Power Supply | 2000W Redundant Titanium Level high-efficiency power supplies |
| Cooling System | 4x 9cm heavy duty fans with optimal cooling zone |
| Form Factor | 3U Rackmount 444.5 x 132.5 x 749.3mm (17.5” x 5.21” x 29.5”) |

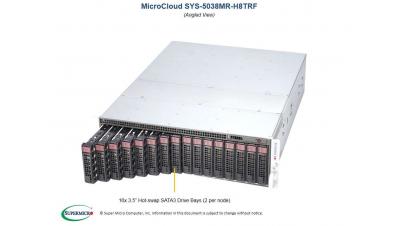

SYS-5038MR-H8TRF
8 Hot-plug UP Nodes
| Processor Support | 8 set of Intel® Xeon® Processor E5-2600 v4/v3 product families, and Intel® Xeon® Processor E5-1600 v4/v3 product families |
|---|---|
| Key Applications | • CDN • Cloud Computing • Social Networking • Video Streaming • Web Cache |
| Outstanding Features | • 8 x Hot-plug UP nodes in 3U • 1 x PCI-E x8 slot • 1620W Redundant Platinum Level high-efficiency power supplies • IPMI 2.0 + KVM with dedicated LAN • Hot-swappable SAS/SATA3 (6Gbps) HDDs • UID LED |
| Serverboard | SUPER● ® X10SRD-F |
| Chipset | Intel® C612 Chipset |
| System Memory(Max.)* | 4 DIMMs per node, support up to 512GB ECC 3DS LRDIMM / 256GB ECC LRDIMM / 128GB ECC RDIMMs 2400/2133/1866/1600 MHz Memory |
| Expansion Slots | 8 set of 1 PCI-E 3.0 x8 (low profile) and 8 set of Micro-LP slots (Micro-LP upgradable ) |
| Onboard Storage Controller |
8 set of Intel® C612 for 2 SATA3 (6Gbps) ports; RAID 0, 1; Selected low-profile RAID or HBA RAID card to support SAS HDD |
| Connectivity | 8 set of Dual LAN with 2x Intel I350 Gigabit Ethernet controllers |
| VGA/Audio | 8 set of AST2400 VGA |
| Management | 8 set of Dedicated Management LAN port |
| Drive Bays | 8 set of 2 x 3.5” hot-swap SATA3/SAS (6Gbps) drive bays |
| Peripheral Bays | N/A |
| Power Supply | 1620W Redundant Platinum Level high-efficiency power supplies |
| Cooling System | 4x 8cm hot-swap cooling fans with fan speed control |
| Form Factor | 3U Rackmount 387 x 132 x 585mm (15.25" x 5.2" x 23") |

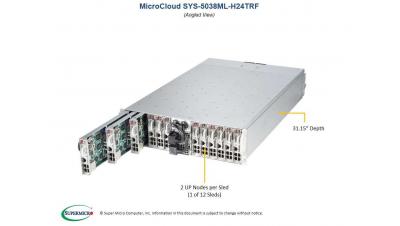

SYS-5038ML-H24TRF
24 UP Nodes
| Processor Support | 24 set of 4th Generation Intel® Core™ i3 processor, Intel® Celeron® processor, Intel® Pentium® processor or Intel® Xeon® processor E3-1200 v3 product families; Socket H3 (LGA 1150) up to 80W CPU |
|---|---|
| Key Applications | • Cloud Computing • Web Cache, CDN, Video Streaming • Web/Collocating Service • Social networking/download |
| Outstanding Features | • 24x UP Nodes in 12 hot-plug sleds, 2 nodes per sled • 2000W Redundant Platinum Level Digital high-efficiency power supplies • 2x 2.5” SATA3 (6Gbps) HDDs or 4x 2.5” slim SDD w/ optional kit per sled • IPMI 2.0 + KVM with dedicated LAN • Multi-node UP server • UID LED |
| Serverboard | SUPER● ® X10SLE-DF |
| Chipset | Intel® C224 chipset |
| System Memory(Max.)* | 24 set of up to 32GB ECC UDIMM, VLP DDR3-1600 MHz in 4 DIMM slots |
| Expansion Slots | N/A |
| Onboard Storage Controller |
24 set of Intel® C224 controller for 2 SATA 3 *6Gbps) ports; RAID 0, 1,5, 10 |
| Connectivity | 24 set of Dual LAN Intel® i350 GbE LAN controller |
| VGA/Audio | 24 set of AST2400 VGA |
| Management | 12 set of IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 24 set of 1x 2.5” SATA3 fixed HDDs; or 2x 2.5” slim SSD w/ optional kit |
| Peripheral Bays | 2000W Redundant Platinum Level Digital high-efficiency power supplies |
| Power Supply | 4x 9cm Heavy duty fans with optimal cooling zone |
| Cooling System | 3U Rackmount 444.5 x 132.5 x 791.2mm (17.5” x 5.21” x 31.15”) |
| Form Factor | 2U Rackmount; Enclosure: 437 x 89 x 723mm (17.2” x 3.5” x 28.46”) |
