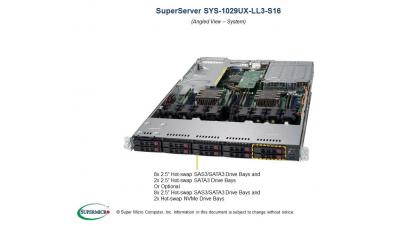

SYS-1029UX-LL3-S16
Low Latency
| Processor Support | 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Financial Analysis • Business Critical Applications • Enterprise Server |
| Outstanding Features | • Hyper-Speed Hardware Acceleration • Low Latency & Jitter Optimized • 8x 2.5” SAS/SATA drive bays • 2x 2.5” NVMe drive bay support • Optimized cooling • Plantium level redundant power supply |
| Serverboard | SUPER● ® X11DPU-XLL |
| Chipset | Intel C621 Chipset |
| System Memory (Max.)* | Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only); |
| Expansion Slots | 2 PCI-E 3.0 x16(Full Height, 10.5” Length) 1 PCI-E 3.0 x8 (Low Profile) 1 PCI-E 3.0 x8(Internal SAS3 integrated 3108) |
| Onboard Storage Controller |
Broadcom® 3108 controller for 8 SAS3 ports |
| Connectivity | 4x Gigabit Ethernet ports via AOC-UR-I4G |
| VGA/Audio | 1 VGA, 1 Aspeed AST2400 BMC |
| Management | Intel® Node Manager; IPMI2.0; KVM with dedicated LAN; NMI; SPM; SUM; SuperDoctor® 5; Watchdog; |
| Drive Bays | 8x SATA/SAS3 Hot-swap 2.5” HDD bays (SAS3 3108) 2x NVME Hot-swap 2.5” HDD bays |
| Peripheral Bays | N/A |
| Power Supply | 750W High-efficiency (Platinum level) digital power supply |
| Cooling System | 8 heavy duty fans w/ Optimal Fan Speed Control |
| Form Factor | 437 x 43 x 706mm (17.2” x 1.7” x 27.8”) |

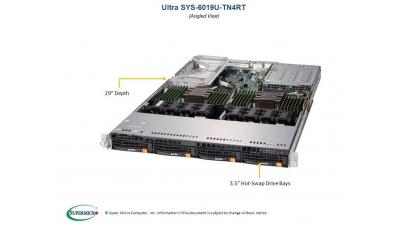

SYS-6019U-TN4RT
1U X11 Ultra, 4x 3.5” NVMe Drive Bays
| Processor Support | 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Virtualization • Cloud Computing • High End Enterprise Server |
| Outstanding Features | • 4 3.5” drive bays • 24 DIMM sockets • 4 PCI-E Add-on cards • 205W CPU support • Platinum Level Power Supply • 2 SATA DOM support with embedded power |
| Serverboard | SUPER● ® X11DPU |
| Chipset | Intel® C621 chipset |
| System Memory (Max.)* | Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots; Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only). |
| Expansion Slots | 2 PCI-E 3.0 x16 (FH, 10.5”L); 2 PCI-E 3.0 x8 (1 LP, 1 Internal LP) |
| Onboard Storage Controller |
Intel® C621 SATA3 (6Gb/s) controller |
| Connectivity | 2x 10GBase-T Ethernet ports; 2 VGA ports (1 rear, 1 onboard) 3 USB 3.0 ports (2 rear, 1 Type A); 1 Serial Port |
| VGA/Audio | Aspeed AST2500 BMC |
| Management | Intel® Node Manager; Redfish API; IPMI2.0; KVM with dedicated LAN; NMI; SPM; SSM; SUM; SuperDoctor® 5; |
| Drive Bays | 4 hot-swap 3.5” drive support; 4 NVMe/SATA3 ports |
| Peripheral Bays | N/A |
| Power Supply | Redundant 750W Platinum Level Power Supply |
| Cooling System | 8 heavy duty fans w/ Optimal Fan Speed Control, 1 Air Shroud |
| Form Factor | 437 x 43 x 737mm (17.2” x 1.7” x 29”) |

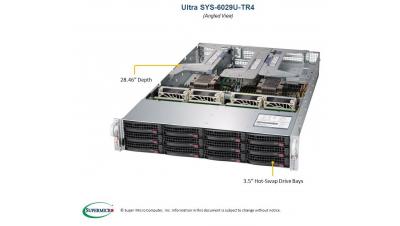

SYS-6029U-TR4
2U X11 Ultra, 12x 3.5” Drive Bays
| Processor Support | 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Virtualization • Hyperconverge Storage • Cloud Computing • High End Enterprise Server |
| Outstanding Features | • 12x 3.5” hot-swap drive bays • Optional SAS3 and NVMe support • 24 DIMM support • 1000W Titanium Level Power Supply • Flexible LAN Options |
| Serverboard | SUPER● ® X11DPU |
| Chipset | Intel® C621 chipset |
| System Memory (Max.)* | Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots; Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only). |
| Expansion Slots | 1 PCI-E 3.0 x16(FH, 10.5”L); 5 PCI-E 3.0 x8(FH, 10.5”L); 1 PCI-E 3.0 x8(LP); 1 PCI-E 3.0 x8(internal LP) |
| Onboard Storage Controller |
Intel® C621 SATA3 (6Gb/s) controller |
| Connectivity | 4 GbE ports with Intel® i350 Ethernet Controller; 3 USB 3.0 ports (2 rear, 1 Type A); 1 Serial Port |
| VGA/Audio | Aspeed AST2500 BMC |
| Management | Intel® Node Manager; Redfish API; IPMI2.0; KVM with dedicated LAN; NMI; SPM; SSM; SUM; SuperDoctor® 5; |
| Drive Bays | 12 Hot-swap 3.5” Drive Bays; 12 SATA3 ports by default; Optional drive support: 8 SAS3 + 4 SAS3/NVMe; Optional 2 Rear Hot-swap 2.5” Drive Bays |
| Peripheral Bays | N/A |
| Power Supply | 1000W Redundant Power Supplies with PMBus |
| Cooling System | 4 Heavy duty 8cm PWM fans |
| Form Factor | 437 x 89 x 723mm (17.2” x 3.5” x 28.46”) |
