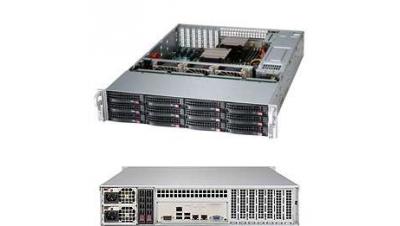

SSG-6028R-E1CR12T
X10 SAS3 HW RAID controller, Storage Expandable
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s |
|---|---|
| Key Applications | • Corporate Database • Data Center • Database Processing & Storage • Enterprise Server • HPC • iSCSI SAN |
| Outstanding Features | • Onboard Broadcom® 3108 SAS3 HW RAID controller • 12x 3.5” hot-swap SAS3/SATA3 drive bays • Supports dual 145W CPU • Supports 16 DIMM DDR4 up to 2133MHz • Dual 10G BaseT • Redundant 920W Platinum Level (94%+) Power Supplies |
| Serverboard | SUPER● ® X10DRH-CT |
| Chipset | Intel® C612 chipset |
| System Memory(Max.)* | Up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 16 DIMM slots |
| Expansion Slots | 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8 |
| Onboard Storage Controller |
Broadcom® 3108 SAS3 onboard controller card |
| Connectivity | Dual 10GBase-T with Intel® X540 10GbE Controller |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 12x 3.5” hot-swap SAS3/SATA3 drive bay; Optional 4x NVMe hybrid drive bay support (8x 3.5” + 4x NVMe) |
| Peripheral Bays | 2x 2.5” optional rear hot-swap drive bay |
| Power Supply | 920W Redundant Platinum Level high-efficiency power supplies with I²C & PMBus |
| Cooling System | 3x 8cm hot-swap redundant PWM cooling fans |
| Form Factor | 2U Rackmount 437 x 89 x 647mm (17.2” x 3.5” x 25.5”) |
