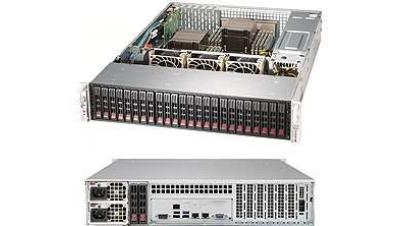

SSG-2029P-E1CR24H
X11 SuperStorage, 2U
| Processor Support | Intel® Xeon® Scalable Processors with UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Corporate Database • Database Processing & Storage • Enterprise Server • HPC • Data Center • iSCSI SAN |
| Outstanding Features | • 24x 2.5” Hot-swap SAS3 bays • 205W CPU support • 16 DIMM support • Dual 10G BaseT • Dual JBOD Expansion Ports • 1200W Titanium Level high-efficiency power supply • Broadcom® 3108 HW controllers |
| Serverboard | SUPER● ® X11DPH-T |
| Chipset | Intel® C624 chipset |
| System Memory(Max.)* | Up to 2TB 3DS ECC, DDR4-2666MHz in 16 DIMM slots |
| Expansion Slots | 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8. Slot 2 & 3 occupied by controller and JBOD Expansion Port |
| Storage Controller | Broadcom® 3108 SAS3 add-on controller card |
| Connectivity | Dual LAN with 10GBase-T with Intel® X557 |
| VGA/Audio | 1 VGA |
| Management | Intel® Node Manager, IPMI2.0, NMI, SPM, SUM, SuperDoctor® 5, Watchdog |
| Drive Bays | 24x 2.5” hot-swap SAS3/SATA3 drive bay |
| Peripheral Bays | 2x 2.5” rear hot-swap drive bay. |
| Power Supply | 1200W Titanium Level high-efficiency power supply |
| Cooling System | 3x 8cm hot-swap redundant PWM cooling fans. |
| Form Factor | 2U 17.2” (437mm) x 3.5” (89mm) x 24.8” (630mm) |

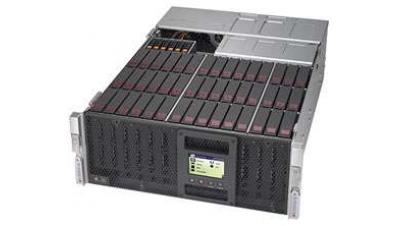

SSG-6049P-E1CR45H
X11 SuperStorage
| Processor Support | Intel® Xeon® Processor Scalable Family with UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Corporate Database • Data Center • Database Processing & Storage • Enterprise Server • HPC • iSCSI SAN |
| Outstanding Features | • 45x 3.5” Drive in 4U Form Factor • Supports Dual 205W Skylake CPU • 24 DIMM sockets • Support SIOM Card for Multiple IO Options • Broadcom® 3108 SAS3 HW RAID controller |
| Serverboard | SUPER● ® X11DSC+ |
| Chipset | Intel® C621 chipset |
| System Memory(Max.)* | Up to 3TB 3DS ECC, DDR4-2666MHz in 24 DIMM slots |
| Expansion Slots | 3 PCI-E 3.0 x8 for Add-On-Module (AOM); |
| Onboard Storage Controller |
Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10,50; |
| Connectivity | N/A |
| VGA/Audio | 1 VGA D-Sub Connector, 1 Aspeed AST2500 BMC; |
| Management | Intel® Node Manager; IPMI (Intelligent Platform Management Interface) v2.0 with KVM support; KVM with dedicated LAN; NMI; SPM; SSM; SUM; SuperDoctor® 5; Watchdog; |
| Drive Bays | 45x 3.5” hot-swap SAS/SATA drive bay with SES3 |
| Peripheral Bays | 2x 2.5” hot-swap drive bay |
| Power Supply | Yes Redundant 2 Qty. PWS-1K66P-1R |
| Cooling System | 5x 80mm rear hot-swap exhaust PWM fan; |
| Form Factor | 4U Rackmount 17.2” (437mm) x 7” (178mm) x 26” (660mm) |

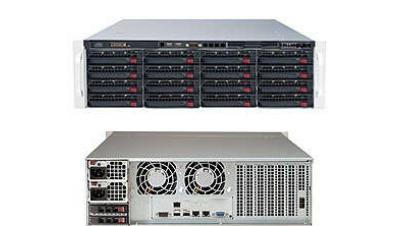

SSG-6039P-E1CR16H
X11 SuperStorage, 3U
| Processor Support | Intel® Xeon® Scalable Processors with UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Corporate Database • Data Center • Database Processing & Storage • Enterprise Server • HPC • iSCSI SAN |
| Outstanding Features | • 2x Optional Onboard NVMe M.2 • 16x 3.5” SAS3/SATA3 drive bays • 205W CPU support • 16 DIMM support • Dual 10G BaseT • Dual JBOD Expansion Ports • 1200W Titanium Level high-efficiency power supply • Broadcom® 3108 SAS3 HW RAID controller |
| Serverboard | SUPER● ® X11DPH-T |
| Chipset | Intel® C624 chipset |
| System Memory(Max.)* | Up to 2TB 3DS ECC, DDR4-2666MHz in 16 DIMM slots |
| Expansion Slots | 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8. Slot 2 & 3 occupied by controller and JBOD Expansion Port |
| Storage Controller | Broadcom® 3108 SAS3 add-on controller card |
| Connectivity | Dual LAN with 10GBase-T with Intel® X557 |
| VGA/Audio | 1 VGA |
| Management | Intel® Node Manager, IPMI2.0, NMI, SPM, SUM, SuperDoctor® 5, Watchdog |
| Drive Bays | 16x 3.5” hot-swap SAS3/SATA3 drive bays |
| Peripheral Bays | 2x 2.5” rear hot-swap drive bays |
| Power Supply | 1200W Titanium Level high-efficiency power supply |
| Cooling System | 3x 8cm hot-swap redundant PWM cooling fans. 2x 80mm rear hot-swap exhaust PWM fan |
| Form Factor | 3U 17.2” (437mm) x 5.2” (132mm) x 25.5” (647mm) |
