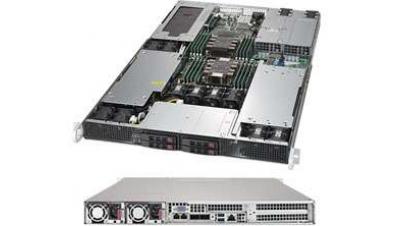

SYS-1029GP-TR
1U X11 GPU
| Processor Support | Intel® Xeon® Scalable Processors with UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • 2D/3D and CAD Applications • 3D Rendering • Astrophysics • Chemistry • Cloud and Virtualization needs • Cloud Computing |
| Outstanding Features | • 16 DIMM sockets • 4x 2.5” SATA drives • GPU health monitoring with fan speed control • Up to 3 GPU cards in 1U |
| Serverboard | SUPER● ® X11DPG-SN |
| Chipset | Intel® C621 chipset |
| System Memory(Max.)* | Up to 2TB 3DS ECC, DDR4-2666MHz in 16 DIMM slots |
| Expansion Slots | 4 PCI-E 3.0 x16; 1 PCI-E 3.0 x8 (in x16) low profile slot |
| Onboard Storage Controller |
Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10; |
| Connectivity | N/A |
| VGA/Audio | 1 VGA, 1 Aspeed AST2500 BMC; |
| Management | Intel® Node Manager; IPMI2.0; KVM with dedicated LAN; SPM; SSM; SUM; SuperDoctor® 5; Watchdog; |
| Drive Bays | 4 x 2.5” hot-swap SAS/SATA drive bay |
| Peripheral Bays | N/A |
| Power Supply | 1600W Platinum level efficiency redundant power supplies |
| Cooling System | 10 x 4cm heavy duty counter-rotating fans with air shroud & optimal fan speed control |
| Form Factor | 1U 17.2” (437mm) x 1.7” (43 mm) x 30.6” (777 mm) |

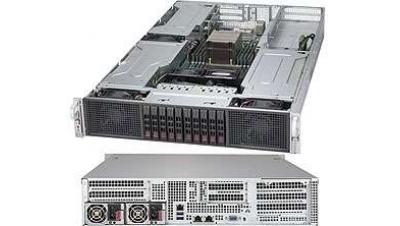

SYS-2029GP-TR
2U X11 GPU
| Processor Support | Intel® Xeon® Scalable Processors with UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • 2D/3D and CAD Applications • 3D Rendering • Astrophysics • Chemistry • Cloud and Virtualization needs • Cloud Computing |
| Outstanding Features | • 10x 2.5” SAS/SATA drive bays • 16 DIMM sockets • GPU health monitoring with fan speed control • High-density, Enterprise Performance, Cost-effective |
| Serverboard | SUPER● ® X11DPG-SN |
| Chipset | Intel® C621 chipset |
| System Memory(Max.)* | Up to 2TB 3DS ECC, DDR4-2666MHz in 16 DIMM slots |
| Expansion Slots | 6 PCI-E x16 slots; 1 PCI-E x8 (in x16) low profile slot |
| Onboard Storage Controller |
Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10; |
| Connectivity | N/A |
| VGA/Audio | 1 VGA, 1 Aspeed AST2500 BMC; |
| Management | Intel® Node Manager; IPMI2.0; KVM with dedicated LAN; SPM; SSM; SUM; SuperDoctor® 5; Watchdog; |
| Drive Bays | 10 x 2.5” hot-swap SAS/SATA drive bay |
| Peripheral Bays | N/A |
| Power Supply | 1600W Platinum level efficiency redundant power supplies |
| Cooling System | 5x 8cm heavy duty fans with optimal fan speed control |
| Form Factor | 2U 17.2” (437mm) x 3.5” (89 mm) x 31” (787 mm) |

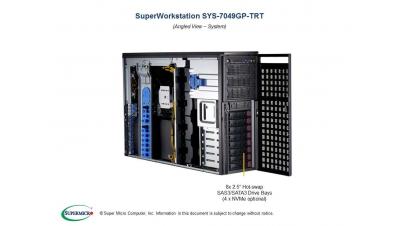

SYS-7049GP-TRT
Workstation, 4U GPU
| Processor Support | Intel® Xeon® Scalable Processors with UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Scientific Virtualization • High Performance Computing • High-End GPU workstation • Bio-Informatics • Machine Learning • Computer Aided Design |
| Outstanding Features | • Redundant 2000W Titanium Power Supplies • 16 DIMM slots • 8 Hot-Swap 3.5” SATA/SAS Drives • 7.1 HD Audio Header |
| Serverboard | SUPER● ® X11DPG-QT |
| Chipset | Intel® C621 chipset |
| System Memory(Max.)* | 2TB 3DS ECC, DDR4-2666 in 16 DIMM slots |
| Expansion Slots | 6 PCI-E 3.0 x16 Slots; 1 PCI-E x4(in x8 slot) |
| Onboard Storage Controller |
Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10; |
| Connectivity | 2 10GBase-T ports; Intel® X550 10GBase-T |
| VGA/Audio | Aspeed AST2500 |
| Management | Intel® Node Manager; Redfish API; IPMI2.0; KVM with dedicated LAN; NMI; SPM; SSM; SUM; SuperDoctor® 5; |
| Drive Bays | 8 Hot-swap 3.5” Drive Bays; (2x SATA3 ports default) |
| Peripheral Bays | N/A |
| Power Supply | 2000W Titanium Level efficiency redundant power supplies |
| Cooling System | 4 heavy duty fans, 4 exhaust fans, and 2 active heat sink w/ Optimal Fan Speed Control |
| Form Factor | 4U Rackmount/Workstation 462 x 178 x 673mm (18.2” x 7.0” x 26.5”) |
