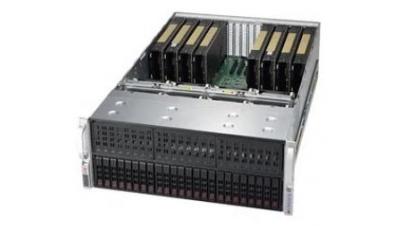

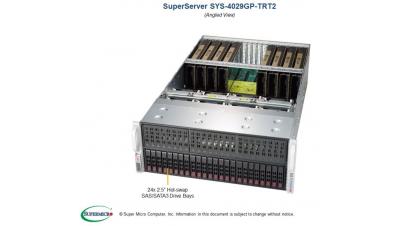

SYS-4029GP-TRT2
4U X11 GPU Optimized, 4U 8/10 GPUs
| Processor Support | 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • 3D Rendering • Astrophysics • Chemistry • Cloud and Virtualization needs • Cloud Computing • Compute Intensive Application |
| Outstanding Features | • 24 DIMM sockets • 24x 2.5” SATA drives • Support up to 8 GPUs • Optimized cooling with no GPU pre-heat |
| Serverboard | SUPER● ® X11DPG-OT-CPU |
| Chipset | Intel® C622 chipset |
| System Memory (Max.)* | Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots(2933MHz in two DIMMs per channel supported on Rev 1.10 MB only) ; Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only); |
| Expansion Slots | 11 PCI-E 3.0 x16 (FH, FL); 1 PCI-E 3.0 x8 (FH, FL, in x16 slot); |
| Onboard Storage Controller |
Intel® C622 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10; |
| Connectivity | 2x 10GBase-T ports; Intel® X540 10GBase-T |
| VGA/Audio | 1x VGA, Aspeed AST2500 BMC |
| Management | Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| Drive Bays | 24x 2.5” Hot-swap SATA/SAS drives |
| Peripheral Bays | N.A |
| Power Supply | 4x 2000W Redundant Titanium Level highefficiency power supplies with I²C & PMBus |
| Cooling System | 8x 92mm heavy duty counter-rotating fans with air shroud & optimal fan speed control |
| Form Factor | 437 x 178 x 737mm (17.2” x 7.0” x 29”) |
SYS-4029GP-TRT3
4U X11 GPU, 4U 8GPU under single root system(Cascade mode)
| Processor Support | 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Artificial Intelligence • Deep Learning Training |
| Outstanding Features | • Support up to 8 GPUs • 24x 2.5” hot-swap drive bays • 24 DIMM sockets • Optimized cooling with no GPU pre-heat |
| Serverboard | SUPER● ® X11DPG-OT-CPU |
| Chipset | Intel® C622 chipset |
| System Memory (Max.)* | Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots(2933MHz in two DIMMs per channel supported on Rev 1.10 MB only) ; Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only); |
| Expansion Slots | 10 PCI-E 3.0 x16 (FH, FL); 1 PCI-E 3.0 x8 (FH, FL, in x16 slot); |
| Onboard Storage Controller |
Intel® C622 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10; |
| Connectivity | 2x 10GBase-T ports; Intel® X540 10GBase-T |
| VGA/Audio | 1 VGA, 1 Aspeed AST2500 BMC |
| Management | Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| Drive Bays | 22x 2.5” SATA/SAS drive bays; 2x 2.5” NVMe/SATA/SAS drive bays |
| Peripheral Bays | N/A |
| Power Supply | 4x 2000W Redundant (2+2) Titanium Level high-efficiency power supplies |
| Cooling System | 8x 92mm heavy duty counter-rotating fans with air shroud & optimal fan speed control |
| Form Factor | 4U |

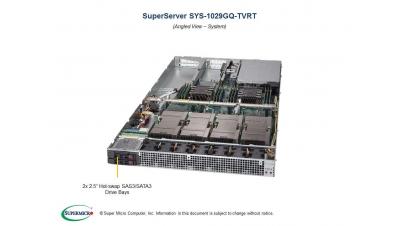

SYS-1029GQ-TVRT
GPU, Artificial Intelligence, NVIDIA® Tesla® V100 SXM2
| Processor Support | Intel® Xeon® Processor Scalable Family (Skylake) with UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Artificial Intelligence • Big Data Analytics • High-performance computing • Research lab/National Lab • Astrophysics • Business Intelligence |
| Outstanding Features | • Optimized for GPUDirect RDMA • Supports 2000W Titanium Power Supply • IPMI 2.0 + KVM with dedicated LAN • GPU health monitoring with fan speed control |
| Serverboard | SUPER● ® X11DGQ |
| Chipset | Intel® C621 chipset |
| System Memory(Max.)* | 1.5TB 3DS ECC, DDR4-2666 in 12 DIMM slots |
| Expansion Slots | 4 x PCI-E by 16 slots |
| Onboard Storage Controller |
Intel® C621 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10; |
| Connectivity | 2 10GBase-T ports; Intel® X540 10GBase-T |
| VGA/Audio | Aspeed AST2500 |
| Management | Intel® Node Manager; Redfish API; IPMI2.0; KVM with dedicated LAN; NMI; SPM; SSM; SUM; SuperDoctor® 5; |
| Drive Bays | 2 x 2.5” hot-swap SAS/SATA/NVME drive bay; 2x 2.5” Internal Fixed drive bay |
| Peripheral Bays | N/A |
| Power Supply | 2000W Titanium level efficiency redundant power supplies |
| Cooling System | 7x 4cm heavy duty counter-rotating fans with air shroud & optimal fan speed control |
| Form Factor | 1U Rackmount 437 x 43 x 894mm (17.2” x 1.7” x 35.2”) ; Enclosure: 437 x 43 x 894mm (17.2” x 1.7” x 35.2”) |
