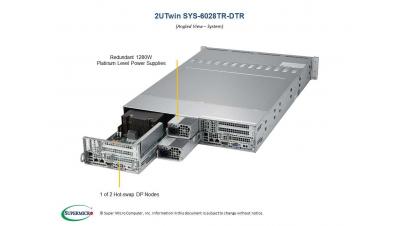

SYS-6028TR-DTR
2U Twin, Cost-Optimized, 2 hot-swap nodes in 2U w/ 12x 3.5” HDDs, New! Intel® Xeon® Processor E5-2600 v4 product family support
| Processor Support | Twin set of Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s; CPU TDP support Up to 145W |
|---|---|
| Key Applications | • Data Center • Web Server • HPC • Virtualization |
| Outstanding Features | • 8 DIMM slots • IPMI 2.0 + KVM with dedicated LAN • 2x SATADOM • 2 hot-swappable nodes in 2U • 1280W Platinum Level redundant high-efficiency power supplies |
| Serverboard | SUPER● ® X10DRT-H |
| Chipset | Intel® C612 Chipset |
| System Memory(Max.)* | Twin set of up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 8 DIMM slots |
| Expansion Slots | Twin set of 2x PCI-E 3.0 x8 (FHHL); 1x PCI-E 3.0 x8 (LP) |
| Onboard Storage Controller |
Twin set of Intel® C612 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,10 |
| Connectivity | Twin set of dual LAN with Intel® i350 Gigabit Ethernet controller |
| VGA/Audio | Twin set of AST2400 VGA |
| Management | Twin set of IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | Twin set of 6x 3.5” hot-swap SATA3 HDDs |
| Peripheral Bays | Redundant 1280W Platinum Level high-efficiency power supplies with I2C & PMBus |
| Power Supply | 4x 80mm heavy duty fans with PWM fan speed control |
| Cooling System | 2U Rackmount 438 x 88 x 724mm (17.25” x 3.47” x 28.5”) |
| Form Factor | 2U (4-node) Rackmount |
