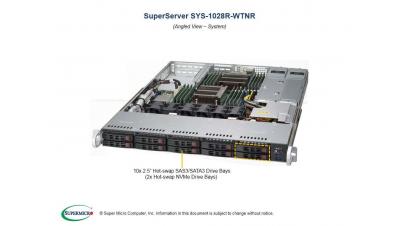

SYS-1028R-WTNR
WIO, NVMe Optimized
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s |
|---|---|
| Key Applications | • Enterprise Performance Native NVMes • Cost-effective Storeage optimized • 8 SATA3 ports and 2 NVMe/SATA3 hybrid ports • High-density, Enterprise Performance, Cost-effective • 16 DIMM slots |
| Outstanding Features | • 700W/750W Platinum Level high-efficiency power supply • IPMI 2.0 + KVM with Dedicated LAN • 16 DIMM slots • Up to 2 add-on cards |
| Serverboard | SUPER● ® X10DRW-N |
| Chipset | Intel® C612 Chipset |
| System Memory(Max.)* | Up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 16 DIMM slots |
| Expansion Slots | 2 PCI-E 3.0 x16 full-height, half-length slots |
| Onboard Storage Controller |
Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Connectivity | Dual LAN with Intel® Ethernet Controller i350-AM2 |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 8 SATA3 ports and 2 NVMe/SATA3 hybrid ports |
| Peripheral Bays | N/A |
| Power Supply | 700W/750W redundant Platinum Level (PWS-706) or Gold Level (PWS-704) high-efficiency power supplies |
| Cooling System | 5x 4cm heavy duty counter-rotating fans with optimal fan speed control |
| Form Factor | 1U Rackmount 437 x 43 x 630mm (17.2” x 1.7” x 24.8”) |

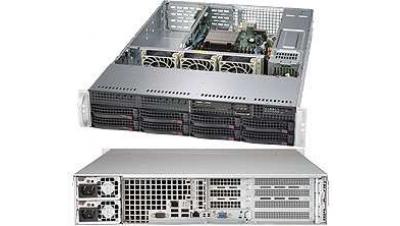

SYS-5028R-WR
UP WIO, Multiple AOC, Expansion Option
| Processor Support | Single Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s |
|---|---|
| Key Applications | • Database Processing & Storage • Connectivity/Storage Computer Nodes • Data Warehouse |
| Outstanding Features | • 8x 3.5” Hot-swap SATA3 bays w/ RAID • Redundant 500W Platinum Level power • 5 PCI-E 3.0 x8 slots |
| Serverboard | SUPER● ® X10SRW-F |
| Chipset | Intel® C612 Chipset |
| System Memory(Max.)* | Up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 8 DIMM slots |
| Expansion Slots | 5 PCI-E 3.0 x8 slots |
| Onboard Storage Controller |
Intel® C612 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Connectivity | 2x GbE port, 1x dedicated IPMI port |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 8x 3.5” Hot-swap SATA3 bays w/ RAID; optional fixed drive bays |
| Peripheral Bays | 1x slim DVD-ROM drive bay 2x USB 2.0 ports (option) |
| Power Supply | Redundant 500W Platinum Level power supplies optional BBP™ module support |
| Cooling System | 3x middle cooling fans |
| Form Factor | 2U Rackmount 437 x 89 x 647mm (17.2” x 3.5” x 25.5”) |

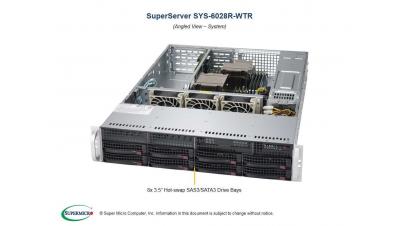

SYS-6028R-WTRT
2U WIO, 16 DIMMs, 6 PCI-E 3.0 x8
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s |
|---|---|
| Key Applications | • Cloud and Virtualization needs • Database Processing & Storage • Hosting & Application delivery • HPC cluster computer nodes • Simulation & Automation |
| Outstanding Features | • 2 SATA DOM support with built-in power • Redundant 740W Platinum Level high-efficiency power supplies • Supports 16 DIMM DDR4-2133MHz • Up to 6 add-on cards |
| Serverboard | SUPER● ® X10DRW-iT |
| Chipset | Intel® C612 Chipset |
| System Memory(Max.)* | Up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 16 DIMM slots |
| Expansion Slots | 6 PCI-E 3.0 x8 (2 FHFL, 2 FHHL, 2LP) |
| Onboard Storage Controller |
Intel® C612 controller for 10 SATA3 (6Gbps) ports; RAID 0,1,5,10 |
| Connectivity | Dual 10Gb Ethernet LAN with Intel® X540 and 10GBase-T Connector |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 8x 3.5” hot-swap SAS/SATA drive bays |
| Peripheral Bays | 1 slim DVD-ROM drive (optional) |
| Power Supply | Redundant 740W Platinum Level high-efficiency power supplies with I2C & PMBus |
| Cooling System | 3x 8cm (7000 RPM) hot-swap PWM cooling fan |
| Form Factor | 2U Rackmount 437 x 89 x 647mm (17.2” x 3.5” x 25.5”) |
