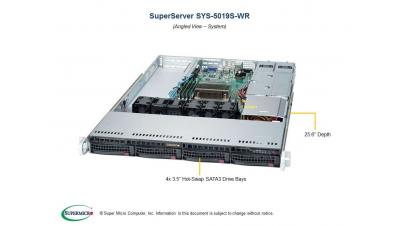

SYS-5019S-WR
Mainstream UP
| Processor Support | Intel® Xeon® processor E3-1200 v6/v5, 6th Gen. Intel® Core™ i3 processor, Intel® Celeron® processor, Intel® Pentium® processor product families, Socket H4 (LGA 1151) supported |
|---|---|
| Key Applications | • HA, High flexibility, VM, Communication |
| Outstanding Features | • Quick Release Rails • 2x PCI-E 3.0 x8, 1x PCI-E 3.0 x4 (x8) add-on card slot • M.2 mini-PCI-E connector (PCI-E 3.0 x2) • 2x PCI-E 3.0 x8 (or 1x16) and 1 x8 (x4 signal) add-on card slots • 1+1 Redundant 500W high-efficiency power • Up to 4 hot-swap 3.5” drives |
| Serverboard | SUPER● ® X11SSW-F |
| Chipset | Intel® C236 Express chipset |
| System Memory(Max.)* | Up to 4x ECC UDIMM slots, up to 64GB DDR4-2133MHz |
| Expansion Slots | 2x PCI-E 3.0 x8, 1x PCI-E 3.0 x4 (x8) add-on card slot |
| Onboard Storage Controller |
Intel® C236 Express chipset |
| Connectivity | USB 2.0, USB 3.0, VGA, Serial |
| VGA/Audio | Integrated VGA from Aspeed BMC |
| Management | IPMI 2.0 + KVM with dedicated LAN, SuperDoctor® 5, Watchdog |
| Drive Bays | Up to 4 hot-swap 3.5” drives |
| Peripheral Bays | 1x slim DVD-ROM drive bay |
| Power Supply | 350W high-efficiency power supply |
| Cooling System | 4x 4cm chassis internal fan |
| Form Factor | 1U Rackmount 437 x 43 x 650mm (17.2” x 1.7” x 25.6”) |

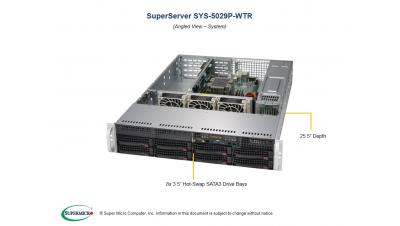

SYS-5029P-WTR
X11 UP WIO, 2U 4 Full-Height PCI-E Slots
| Processor Support | Intel Xeon processor scalable family (Platinum, Gold, Silver, Bronze)Intel® Skylake-EP LGA3647 Socket |
|---|---|
| Key Applications | • Database Processing & Storage • Connectivity/Storage Computer Nodes • Data Warehouse |
| Outstanding Features | • 8x 3.5” Hot-swap SATA3 bays w/ RAID • 2x 10 Gigabit Ethernet Ports |
| Serverboard | SUPER● ® X11SPW-TF |
| Chipset | C622 chipset |
| System Memory(Max.)* | 6-CH memory, 6x DDR4 ECC at 2666MHz, Up to 192GB RDIMM, 384GB LRDIMM, 768GB LRDIMM 3DS |
| Expansion Slots | 4x 8 PCI-E 3.0(FHFL), 1 x8 PCI-E3.0(LP)slot |
| Onboard Storage Controller |
Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10; |
| Connectivity | N/A |
| VGA/Audio | 1 VGA, 1 Aspeed AST2500 BMC; |
| Management | Intel® Node Manager; IPMI2.0; KVM with dedicated LAN; NMI; SPM; SUM; SuperDoctor® 5; Watchdog; |
| Drive Bays | 8X3.5” Hot-swap SATA3 bays |
| Peripheral Bays | 1x slim DVD-ROM drive bay 2x USB 2.0 ports 1x COM port tray 2x USB 3.0 ports |
| Power Supply | Redundant 2 Qty. PWS-501P-1R 500W high-efficiency redundant power supplies with PMBus |
| Cooling System | 3x 8cm (7000 RPM) hot-swap PWM cooling fan; |
| Form Factor | 2U 17.2” (437mm) x 3.5” (89mm) x 25.5” (647mm); Enclosure: 432 x 89 x 635mm (17.2” x 3.5” x 25.6”) Package: 673 x 279 x 864mm (26.5” x 11” x 34”) Gross Weight: 59lbs (26.76kg) Net Weight: 34lbs (15.42kg) |

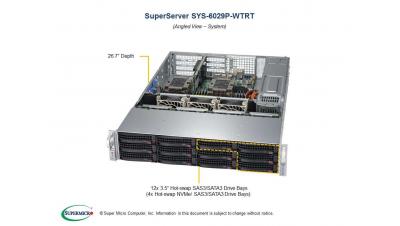

SYS-6029P-WTRT
X11 WIO
| Processor Support | Intel® Xeon® processor E5-2600 V5 with UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Web Server • FireWall Applications • Corporate- WINS, DNS, Print, Login • Gateway, provisioning servers • Compact Network Appliance • Cloud Computing |
| Outstanding Features | • Flexible I/O options • 8x 3.5” SAS3/SATA3 drive bays • Supports 1x Slim DVD-ROM and 1 COM & 2 USB3.0 ports module • Supports 1x AOM SAS3 Mezzanine Card |
| Serverboard | SUPER● ® X11DDW-L |
| Chipset | Intel® C621 chipset |
| System Memory(Max.)* | 768GB 3DS ECC, DDR4-2666MHz in 12 DIMM slots |
| Expansion Slots | 4x PCI-E 3.0 x8 (FHHL), 2x PCI-E 3.0 x8 (LP) slots, 1 PCI-E 3.0 x16 for Add-On-Module (AOM) |
| Onboard Storage Controller |
Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10; |
| Connectivity | N/A |
| VGA/Audio | Onboard VGA |
| Management | Intel® Node Manager; IPMI2.0; KVM with dedicated LAN; SPM; SSM; SUM; SuperDoctor® 5; Watchdog; |
| Drive Bays | 8x 3.5” hot-swap SAS/SATA drive bays |
| Peripheral Bays | 1x optional slim DVD-ROM drive bay |
| Power Supply | Redundant 800W high-efficiency (Platinum Level) power supply |
| Cooling System | 3x 80mm heavy duty fans with PWM fan speed control; |
| Form Factor | 2U 17.2” (437mm) x 3.5” (89mm) x 25.5” (647mm); Enclosure: 437 x 89 x 648mm (17.2”” x 3.5” x 25.5”) |
