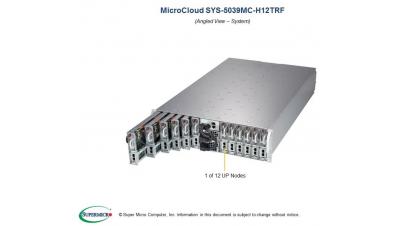

SYS-5039MC-H12TRF
MicroCloud, 3U 12 nodes Intel® Xeon® E 2100
| Processor Support | 12 set of Intel® Coffee Lake Xeon® processor E2100, Intel® 8th Gen Core™ i3,6 cores, support up to 95W |
|---|---|
| Key Applications | • Cloud Computing • Web Cache • Web Hosting, VM • Social Networking • Corporate- WINS, DNS, Print, Login |
| Outstanding Features | • 12 UP hot-pluggable nodes in 3U • Flexible HDD selection, 2x 3.5” SATA3 or 4x 2.5” SATA3 or 2x 2.5” NVME plus 2x 2.5” SATA3 or 2x 2.5” NVME plus 1x 3.5” SATA 3 • 1 M.2 SATA3 or NVMe support • 2000W High Efficiency (96%) Titanium Level Redundant Power Supplies • UID LED • Centralized dedicated management switch port |
| Serverboard | SUPER● ® X11SCE-F |
| Chipset | Intel® C246 chipset |
| System Memory (Max.)* | 12 set of up to 128GB Unbuffered ECC Very Low Profile DDR4 2666MHz in 4 DIMM sockets |
| Expansion Slots | 12 set of Micro-LP slots (MicroLP upgradable) |
| Onboard Storage Controller |
12 set of Intel® C246 controller for 2 SATA3 (6Gbps) ports; RAID 0,1,5,10 |
| Connectivity | 12 set of Dual LAN Intel® i350 Gbe LAN controller (via MLP) |
| VGA/Audio | 12 set of Aspeed AST2500 graphics |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel Node Manager, SUM, SPM, SSM, SuperDoctor 5, Watchdog |
| Drive Bays | 12 set of 2x 3.5” SATA3 HDD; or 4x 2.5” SATA3; or 2x 2.5” NVME plus 2x 2.5” SATA3; or 2x 2.5” NVME plus 1x 3.5” SATA3 |
| Peripheral Bays | N/A |
| Power Supply | 2000W Redundant Titanium Level high-efficiency power supplies |
| Cooling System | 4x 9cm Heavy duty fans with optimal cooling zone |
| Form Factor | (17.5” x 5.21” x 29.5”)(28.35” x 16.1” x 42.36”) |

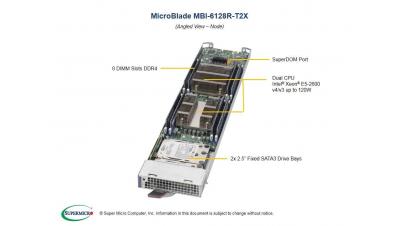

MBI-6128R- T2X
Single-node 2S with Dual 10G Ethernet
| Server Nodes/42U Rack | 196 |
|---|---|
| Processor | Dual Intel® Xeon® processor E5-2600 v4/v3 product families with QPI up to 9.6GT/s |
| Chipset | Intel® C612 |
| Memory Support | 8 DDR4-2400 VLP DIMM slots |
| Max Memory | 256GB |
| Expansion & Drive Bays | • 2x 2.5" SATA3 SSD/HDD • 1x SuperDOM Port |
| Storage RAID | Intel® PCH SATA3 RAID 0,1 |
| Ethernet Interface | Dual-port 10G |
| Management | • IPMI 2.0 • KVM over IP • Virtual Media over LAN • Supermicro RSD |
| LED Indicators | • Power LED • UID / KVM LED • Network Activity LED • Fault LED |
| Dimensions (H x W x D) | 1.2" (30.48mm) x 4.94" (125.48mm) x 23.2" (589.28mm) |
| Chassis | 6U • MBE-628E-416 • MBE-628E-816 • MBE-628EB-422 • MBE-628EB-822 • MBE-628E-420 • MBE-628E-820(D) • MBE-628EB-622 3U • MBE-314E-420(D) • MBE-314E-416 • MBE-314E-220(D) |

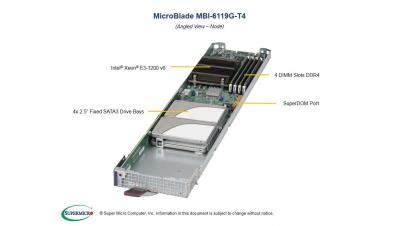

MBI-6119G-T4
Single-node 1S with 4 SATA3
| Server Nodes/42U Rack | 196 |
|---|---|
| Processor | Intel® Xeon® processor E3-1200 v6/v5 product families |
| Chipset | Intel® C236 |
| Memory Support | 4 DDR4-2400 VLP DIMM slots |
| Max Memory | 64GB |
| Expansion & Drive Bays | • 2x 2.5" SATA3 HDD or 4x 2.5" SATA3 SSD • 2x SuperDOM Port |
| Storage RAID | Intel® PCH SATA3 RAID 0,1,5,10 |
| Ethernet Interface | Dual-port Gigabit |
| Management | IPMI 2.0, KVM over IP, Virtual Media over LAN |
| LED Indicators | • Power LED • Fault LED • Network Activity LED • UID / KVM LED |
| Dimensions (H x W x D) | 1.2" (30.48mm) x 4.94" (125.48mm) x 23.2" (589.28mm) |
| Chassis | 6U • MBE-628E-416 • MBE-628E-816 • MBE-628EB-422 • MBE-628EB-822 • MBE-628E-420 • MBE-628E-820(D) • MBE-628EB-622 3U • MBE-314E-420(D) • MBE-314E-416 • MBE-314E-220(D) |
