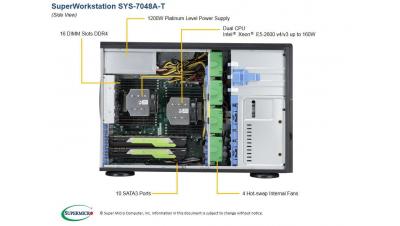

SYS-7048A-T
Thunderbolt Support, Supports 2 GPU/Coprocessor
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s (up to 160W) |
|---|---|
| Key Applications | • 2D/3D and CAD Applications • 3D Rendering • CAD/CAM/CAE • Digital Content Creation • Digital Imaging |
| Outstanding Features | • Tower or 4U Rackmount System • Thunderbolt 2.0 AOC Support • Support 2 double-width + 1 single-width GPUs/Coprocessor • 8x 3.5” hot-swap drive bays • Up to 160W CPU support |
| Serverboard | SUPER● ® X10DAi |
| Chipset | Intel® C612 Chipset |
| System Memory(Max.)* | Up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 16 DIMM slots |
| Expansion Slots | 3 PCI-E 3.0 x16 (2 double-width, 1 single-width), 2 PCI-E 3.0 x8 (1 in x16 slot), 1 PCI-E 3.0 x4 (1 in x16 slot), Support Thunderbolt 2.0 AOC |
| Onboard Storage Controller |
Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Connectivity | Dual LAN with Intel® i210 Gigabit Ethernet Controller |
| VGA/Audio | 7.1 HD Audio |
| Management | NMI, SuperDoctor® 5, Watchdog |
| Drive Bays | 8x 3.5” hot-swap SAS/SATA drive bay |
| Peripheral Bays | 3x standard 5.25” drive bays |
| Power Supply | 1200W Platinum Level Multi-Output Power Supply |
| Cooling System | 2x 2800 RPM fan; 1x 2700 RPM fan |
| Form Factor | Tower/4U Rackmount 452 x 178 x 647mm (17.8” x 7” x 25.5”) |

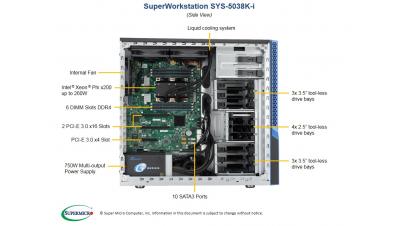

SYS-5038K-i
GPU/Coprocessor, Code Optimization
| Processor Support | Single Intel® Xeon Phi™ x200 processor (LGA 3647) supported (non-fabric) |
|---|---|
| Key Applications | • HPC/Cluster • Financial Analysis • Oil and Gas Simulation • Code Optimization |
| Outstanding Features | • Quiet Operation (31 dBA for 215 W CPUs) • Single Intel® Xeon Phi™ x200 Processor • IPMI 2.0 + KVM with dedicated LAN • Mid Tower ATX Chassis |
| Serverboard | SUPER● ® K1SPE |
| Chipset | Intel® C612 chipset |
| System Memory(Max.)* | Up to 384GB ECC LRDIMM, 192GB ECC RDIMM, DDR4-2400MHz in 6 DIMM slots |
| Expansion Slots | 2 PCI-E 3.0 x16; 1 PCI-E 3.0 x4 |
| Onboard Storage Controller |
Intel® C612 controller with SATA3 (6 Gbps) ports supporting RAID 0,1,5 |
| Connectivity | Dual LAN with Intel® i350 Gigabit Ethernet controller |
| VGA/Audio | Aspeed AST2400 BMC |
| Management | IPMI 2.0 + KVM with dedicated LAN |
| Drive Bays | 6x 3.5” toolless HDD trays; 4x 2.5” toolless HDD trays |
| Peripheral Bays | 2x 5.25” bays |
| Power Supply | 750W Multi-output 80Plus Gold power supply |
| Cooling System | Dual cooling zones; 2x 120 mm front chassis fans, 1x 80 mm mid chassis fan, 1x 120 mm rear chassis fan, 2x 120 mm radiator exhaust fans, and a closed loop liquid cooling unit |
| Form Factor | Mid-Tower ATX 201 x 460 x 493mm (7.9” x 18.1” x 19.4”) |
