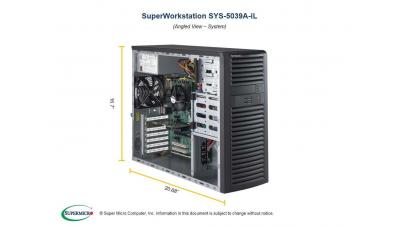

SYS-5039A-iL
High Performance Super Workstation, Versatile Features & I/O Access
| Processor Support | 6th Generation Intel® Core™ i7 Processor, Intel® Core™ i5 Processor, Intel® Core™ i3 Processor product families; Intel® Xeon® processor E3-1200 v5 product families |
|---|---|
| Key Applications | • CAD/CAM/CAE • Digital Imaging • Entry-Level Worksation • Medical Applications • Oil & Gas • Simulation & Automation |
| Outstanding Features | • Cost effective UP platform • SATA 3.0 (6Gbps) support |
| Serverboard | SUPER● ® X11SAE |
| Chipset | Intel® C236 chipset |
| System Memory(Max.)* | Up to 64GB Unbuffered ECC/non-ECC, DDR4-2133MHz in 4 DIMM slots |
| Expansion Slots | 2 PCI-E 3.0 x16 (x16/NA or x8/x8); 2 PCI-E 3.0 x1 (in x4); 2 PCI-32 Slots |
| Onboard Storage Controller |
Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10+ 1 PCI-E M.2(PCI-E x4, 2242/2260/2280)(No Raid Support) |
| Connectivity | Single LAN with Intel® Ethernet Controller i210-AT; Single LAN with Intel® PHY I219LM LAN controller |
| VGA/Audio | 1 DVI - D, 1 DP (DisplayPort), 1 HDMI ALC 888S HD Audio |
| Management | AMT; SuperDoctor® 5; vPro; Watchdog; |
| Drive Bays | 4x 3.5” internal fixed drive bays; Optional 4x 2.5” internal fixed drive bays |
| Peripheral Bays | 2x standard 5.25” drive bays; 1x 3.5” device bay |
| Power Supply | 500W high-efficiency power supply |
| Cooling System | 1x 12cm (1859 RPM) |
| Form Factor | Mid-Tower 424 x 193 x 525mm (16.7” x 7.6” x 20.68”) |

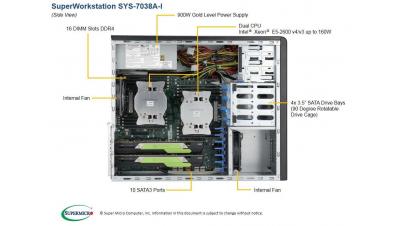

SYS-7038A-i
SuperWorkstation, Thunderbolt Support, Supports 2 GPU/Coprocessor
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s (up to 160W) |
|---|---|
| Key Applications | • 2D/3D and CAD Applications • 3D Rendering • CAD/CAM/CAE • Digital Content Creation • Digital Imaging |
| Outstanding Features | • Thunderbolt 2.0 AOC Support • Support 2 double width GPUs + 1 single width graphic card • 6x USB 3.0 ports • Up to 160W CPU support |
| Serverboard | SUPER● ® X10DAi |
| Chipset | Intel® C612 Chipset |
| System Memory(Max.)* | Up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 16 DIMM slots |
| Expansion Slots | 3 PCI-E 3.0 x16 (2 double-width, 1 single-width), 2 PCI-E 3.0 x8 (1 in x16 slot), 1 PCI-E 3.0 x4 (1 in x16 slot), Support Thunderbolt 2.0 AOC |
| Onboard Storage Controller |
Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Connectivity | Dual LAN with Intel® i210 Gigabit Ethernet Controller |
| VGA/Audio | 7.1 HD Audio |
| Management | NMI, SuperDoctor® 5, Watchdog |
| Drive Bays | 4x 3.5” internal fixed drive bays; optional 4x 2.5” internal fixed drive bays |
| Peripheral Bays | 2x standard 5.25” drive bays; 1x 3.5” device bay |
| Power Supply | 900W Gold Level Multi-Output Power Supply |
| Cooling System | 2x 12cm (1859 RPM) |
| Form Factor | Mid-Tower 424 x 193 x 525mm (16.7” x 7.6” x 20.68”) |

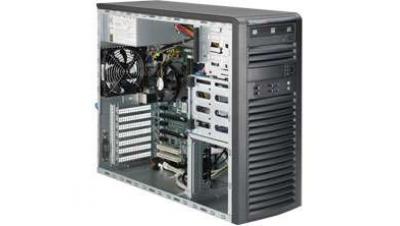

SYS-5038A-iL
High Performance Super Workstation, Versatile, Features & I/O Access
| Processor Support | 4th Generation Intel® Core™ i7 Processor, Intel® Core™ i5 Processor, Intel® Core™ i3 Processor, Intel® Xeon® processor E3-1200 v3 product families |
|---|---|
| Key Applications | • CAD/CAM/CAE • Digital Imaging • Entry-Level Worksation • High-performance computing • Medical Applications • Oil & Gas • Simulation & Automation |
| Outstanding Features | • Cost effective UP platform • SATA 3.0 (6Gbps) support |
| Serverboard | SUPER● ® X10SAE |
| Chipset | Intel® C226 chipset |
| System Memory(Max.)* | Up to 32GB ECC/Non-ECC UDIMM in 4 slots; DDR3 up to 1600 MHz |
| Expansion Slots | 2 PCI-E 3.0 x16 (x16/NA or x8/x8); 3 PCI-E 2.0 x1 in x4 slots 2 PCI-E 32-bit |
| Onboard Storage Controller |
Intel® C226 controller for 6 SATA3 (6Gbps) ports; RAID 0,1,5,10; ASM1061 controller for 2 SATA3 (6Gbps) ports; RAID 0,1 |
| Connectivity | Single LAN with Intel® Ethernet Controller I210; Single LAN with Intel® Ethernet Controller I217 |
| VGA/Audio | 1 DVI, 1 VGA, 1 HDMI, 1 Display Port; Triple Display Capable, ALC 1150HD |
| Management | AMT; SuperDoctor III; vPro; Watchdog |
| Drive Bays | 4x 3.5” internal fixed drive bays; Optional 4x 2.5” internal fixed drive bays |
| Peripheral Bays | 2x standard 5.25” optical device bays; 1x standard 3.5” device bay |
| Power Supply | 500W high-efficiency power supply |
| Cooling System | 1x 12cm (1859 RPM) rear exhaust fan |
| Form Factor | Mid-Tower 424 x 193 x 525mm (16.7” x 7.6” x 20.68”) |
