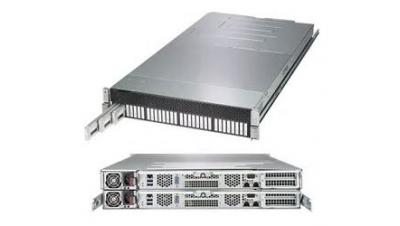

SSG-2029P-DN2RR32L
X11 SuperStorage, Super SBB
| Processor Support | 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Corporate Database • Lustre • HPC • Virtualization • High Availability Storage Appliance Platform • All Flash Storage |
| Outstanding Features | • Dual Drawer/Tray with a total of 32 NVMe Ruler SSDs • IPMI management with dedicated LAN • 2000W High Efficiency (96%) Titanium Level Redundant Power Supplies [nid:58 • NV-DIMM support • Shared storage between redundant controllers • Node to node heartbeat/ NTB connectivity |
| Serverboard | SUPER● ® X11DSN-TSq |
| Chipset | Intel® C627 chipset |
| System Memory (Max.)* | Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only) |
| Expansion Slots | 2 PCI-E 3.0 x16 Low-profile slots, 1 PCI-E 3.0 x16 SIOM slot from CPU2, x8 signals shared with QAT enabled board per node |
| Onboard Storage Controller |
N/A |
| Connectivity | Dual LAN with 10GBase-T with Intel® X772 + PHY Intel® X557; Dual 10G private Ethernet between controller nodesNode to node PCI-E x8 NTB link |
| VGA/Audio | 1 VGA D-Sub Connector, 1 Aspeed AST2500 BMC |
| Management | Intel® Node Manager; IPMI (Intelligent Platform Management Interface) v2.0 with KVM support; IPMI2.0; KVM with dedicated LAN; NMI; SPM; SSM; SUM; SuperDoctor® 5; Watchdog; |
| Drive Bays | 32 hot-swappable Intel Ruler NVMe drive bays + 1x M.2 per node |
| Peripheral Bays | N/A |
| Power Supply | 2000W Redundant Titanium Level highefficiency power supplies |
| Cooling System | 6x 6cm counter rotating fans |
| Form Factor | 2U 17.2” (437mm) x 3.5” (89mm) x 33.3” (846mm) |

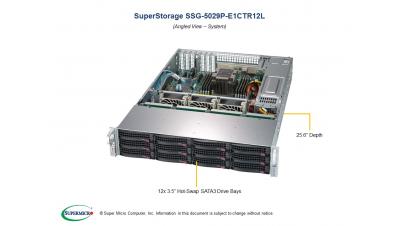

SSG-5029P-E1CTR12L
SuperStorage, UP
| Processor Support | Intel Xeon processor scalable family (Platinum, Gold, Silver, Bronze)Intel® Skylake-EP LGA3647 Socket |
|---|---|
| Key Applications | • Connectivity/Storage Computer Nodes • Application and data serving • High Availability Storage Appliance Platfor |
| Outstanding Features | • Broadcom® 3008 controller onboard • Remote management via dedicated IPMI BMC • 12x 3.5” hot-swap SAS3 drive bays |
| Serverboard | SUPER● ® X11SPH-nCTF |
| Chipset | Intel® C622 chipset |
| System Memory (Max.)* | Up to 8x 288-pin DDR4 DIMM slots Up to 1TB ECC 3DS LRDIMM Up to 512GB ECC LRDIMM Up to 256GB ECC RDIMM |
| Expansion Slots | 1 PCI-E 3.0 x16 (x16 or x8 ); 1 PCI-E 3.0 x8 (x0 or x8 ); 1 PCI-E 3.0 x8; 1 PCI-E 3.0 x4 (in x8 slot); |
| Onboard Storage Controller |
Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10; Broadcom® 3008 SW controller for 8 SAS3 (12Gbs) ports; RAID 0,1,10; |
| Connectivity | N/A |
| VGA/Audio | 1 VGA |
| Management | Intel® Node Manager; IPMI2.0; KVM with dedicated LAN; NMI; SPM; SUM; SuperDoctor® 5; Watchdog; |
| Drive Bays | 12x 3.5” hot-swap SAS/SATA drive bay with SES3 2x 2.5” hot-swap drive bay |
| Peripheral Bays | N/A |
| Power Supply | 800W Redundant Power supply |
| Cooling System | 3x 8cm high-performance PWM fans; |
| Form Factor | 2U 17.2” (437mm) x 3.5” (89mm) x 25.5” (647mm); Enclosure: 432 x 76 x 635mm (17.2” x 3.5” x 25.6”) Package: 292 x 673 x 864mm (11.5” x 26.5” x 34”) Gross Weight: 58lbs (26.31kg) Net Weight: 34lbs (15.42kg) |

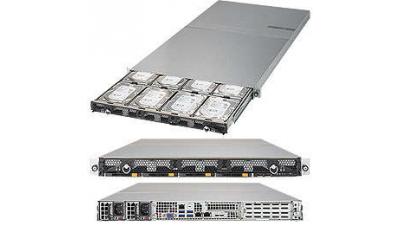

SSG-6019P-ACR12L
1U SuperStorage
| Processor Support | Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Corporate Database • Data Center • Database Processing & Storage • Enterprise Server • Big Data Analytics • Hadoop |
| Outstanding Features | • Broadcom® 3224 SAS3 IT mode controller • 12x 3.5” hot-swap SAS3/SATA3 drive bays • 4x 2.5” 7mm hot-swap NVMe/SATA drive bays • 160W CPU support • Dual 10G BaseT • Internal Cable Arm |
| Serverboard | SUPER● ® X11DDW-NT |
| Chipset | Intel® C622 chipset |
| System Memory(Max.)* | Up to Up to 1.5TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 1.5TB 3DS ECC LRDIMM, in 12 DIMM slots |
| Expansion Slots | 1 PCI-E 3.0 x32 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot, 1 PCI-E 3.0 x16 for Add-On-Module (AOM) |
| Onboard Storage Controller |
Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10; |
| Connectivity | N/A |
| VGA/Audio | Aspeed AST2500 BMC |
| Management | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| Drive Bays | 12x 3.5” hot-swap SAS3/SATA3 drive bays 4x 2.5” hot-swap NVMe/SATA drive bays |
| Peripheral Bays | N/A |
| Power Supply | 1U 600W Redundant Single Output Power Supply w/PMBus, short depth, W54.5xL220xH40 |
| Cooling System | 6x 40x40x56mm 20.5K-17.6K RPM Counter-rotating Fan; |
| Form Factor | 1U 17.6” (447mm) x 1.7” (43mm) x 39.76” (1010mm) |
