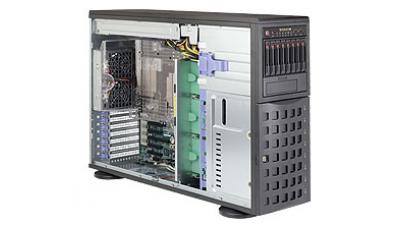

SYS-7048R-C1R4+
Mainstream, 4U Standalone/Rackmount /SAS3, 24 DIMMs, Quad LAN
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s |
|---|---|
| Key Applications | • Big Data Analytics • Compute Intensive Storage Environments • DataCenter Applications • Simulation & Automation |
| Outstanding Features | • 2 SATA DOM support with embedded power • 24 DIMM slots • 8x 2.5” SAS/8x 3.5” SATA hot-swap drive bays • Redundant 920W Platinum Level power • Up to 6 add-on cards |
| Serverboard | SUPER● ® X10DRC-LN4+ |
| Chipset | Intel® C612 Chipset |
| System Memory(Max.)* | Up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 24 DIMM slots |
| Expansion Slots | FH/FL support for 2 PCI-E 3.0 x16; 3 PCI-E 3.0 x8; 1PCI-E 2.0 x4 (in x8 slot) add on cards |
| Onboard Storage Controller |
Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10; SAS3 Broadcom® 3108 HW with 2G Cache controller for 8 SAS3 (12Gbps) ports; RAID 0,1,5,6,10,50,60 |
| Connectivity | Quad LAN with Intel® i350 Gigabit Ethernet Controllers; |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 8x 2.5” 12Gbps SAS3 hot-swap drives in mobile rack and 8x 3.5” 6Gbps SATA3 hot-swap drives (Total 16x hot-swap drive bays) |
| Peripheral Bays | USB Support: Rear: 2x3.0 + 2x2.0, Front 2x2.0 front, 1xType A, optional 1x 5.25” DVD-ROM drive |
| Power Supply | Redundant 920W Platinum Level highefficiency power supplies with I2C & PMBus |
| Cooling System | 3x 8cm hot-swap cooling fans and 2 x 8cm exhaust fans with air shroud with optimal fan speed control |
| Form Factor | Tower/4U Rackmount 452 x 178 x 648mm (17.8” x 7” x 25.5”) |

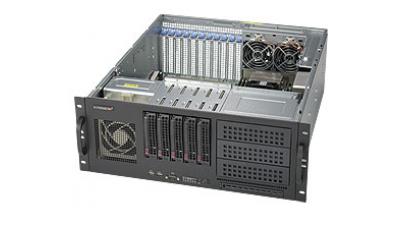

SYS-6048R-TXR
Multi I/O, 11 PCI-E Slots
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s; CPU TDP support up to 145W |
|---|---|
| Key Applications | • Networking Telephony • Surveillance DVR • Industrial Server Solutions • Head-node controller |
| Outstanding Features | • Supports 16 DIMM DDR4-2133MHz • Up to 11 PCI-E slots • 5 hot-swap 3.5” drives bays (SATA3 ports) • 3x 5.25’’ Peripheral Drive Bays • 2 SATA DOMs Support with Embedded Power |
| Serverboard | SUPER● ® X10DRX |
| Chipset | Intel® C612 chipset |
| System Memory(Max.)* | Up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 16 DIMM slots |
| Expansion Slots | 10 PCI-E 3.0 x8 (FH, FL), 1 PCI-E 2.0 x4 (in x8 slot) |
| Onboard Storage Controller |
Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Connectivity | Dual LAN with Intel® i350 Gigabit Ethernet Controller |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 5x 3.5” hot-swap and 3x 5.25” peripheral drive bays |
| Peripheral Bays | 1 optional Slim DVD-ROM bay |
| Power Supply | Redundant 600W power supplies |
| Cooling System | 1x 92x38mm 4-pin PWM front intake fan 2x 80x38mm 4-pin PWM rear exhaust fans |
| Form Factor | 4U Rackmount 437 x 178 x 525mm (17.2” x 7” x 20.68”) |
