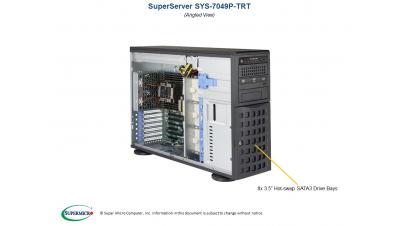

SYS-7049P-TRT
X11 Mainstream, 8x 3.5” SATA3 Drive Bays
| Processor Support | Dual Socket P (LGA 3647), Intel® Xeon® processor Scalable Family; UPI up to 10.4GT/s, Support CPU TDP 45-205W |
|---|---|
| Key Applications | • Cloud and Virtualization needs • Business Critical Applications • Compute Intensive Storage Environments • Database Processing & Storage • Application and data serving • Hosting & Application delivery |
| Outstanding Features | • optional support 2x NVMe fixed drives • 1x M.2 support by default • 16 DIMM sockets • 2 SATA DOM support with embedded power • Super Quiet 1280W Redundant Power high-efficiency Platinum Level (94% typical efficiency ) • Cost optimized • 2x 10GBase-T Ports |
| Serverboard | SUPER● ® X11DPi-NT |
| Chipset | Intel® C622 chipset |
| System Memory(Max.)* | Up to 2TB ECC RDIMM/LRDIMM, DDR4-2666MHz in 16 DIMM slots |
| Expansion Slots | Supports total 6x full height add-on cards in 4x PCI-E 3.0 x16, 2x PCI-E 3.0 x8 slots |
| Onboard Storage Controller |
Intel® C622 controller for 8 SATA3 (6Gbps) ports; RAID 0,1,5,10 |
| Connectivity | Dual LAN RJ45 ports with Intel® X722 10G Based-T Ethernet Controller; 1xDedicated IPMI LAN RJ45 port2x 10GBase-T Ports |
| VGA/Audio | Aspeed AST2500 |
| Management | Intel® Node Manager; IPMI2.0; KVM with dedicated LAN; SPM; SSM; SUM; SuperDoctor® 5; Watchdog; |
| Drive Bays | 8x 3.5” hot-swap SATA3 drive bay |
| Peripheral Bays | USB Support: Rear: 2x3.0 + 2x2.0, Front 2x2.0 front, 1x Type A, optional 1x 5.25” DVD-ROM drive and 2x NVMe fixed drives |
| Power Supply | 2x Super Quiet 1280W Redundant Power Supply modules, high-efficiency Platinum Level (94% typical efficiency ), |
| Cooling System | 2x 80mm PWM Rear Chassis Fans; 3x 80mm high-performance fan; Adjustable Air Shroud with Enhanced cooling design |
| Form Factor | 2U Rackmount Standard Barebone Mainstream Server ; Enclosure: 178 x 452 x 648mm (7”” x 17.8” x 25.5”) Package: 423 x 178 x 648mm (16.65” x 7” x 25.5”) |

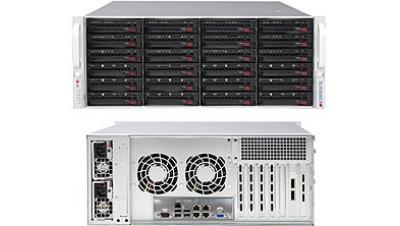

SSG-6049P-E1CR24H
X11 SuperStorage
| Processor Support | Intel® Xeon® Scalable Processors with UPI up to 10.4 GT/s |
|---|---|
| Key Applications | • Corporate Database • Data Center • Database Processing & Storage • Enterprise Server • HPC • iSCSI SAN |
| Outstanding Features | • 2x Optional Onboard NVMe M.2 • 24x 3.5” Hot-swap SAS3 bays • 205W CPU support • 16 DIMM support • Dual 10G BaseT • Dual JBOD Expansion Ports • 1200W Titanium Level high-efficiency power supply • Broadcom® 3108 SAS3 HW RAID controller |
| Serverboard | SUPER● ® X11DPH-T |
| Chipset | Intel® C624 chipset |
| System Memory(Max.)* | Up to 2TB 3DS ECC, DDR4-2666MHz in 16 DIMM slots |
| Expansion Slots | 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8. Slot 2 & 3 occupied by controller and JBOD Expansion Port |
| Storage Controller | Broadcom® 3108 SAS3 add-on controller card |
| VGA/Audio | 1 VGA |
| Management | Intel® Node Manager, IPMI2.0, NMI, SPM, SUM, SuperDoctor® 5, Watchdog |
| Drive Bays | 24x 3.5” hot-swap SAS3/SATA3 drive bays |
| Peripheral Bays | 2x 2.5” rear hot-swap drive bays |
| Power Supply | 1200W Titanium Level high-efficiency power supply |
| Cooling System | 3x 8cm hot-swap redundant PWM cooling fans. 2x 80mm rear hot-swap exhaust PWM fan |
| Form Factor | 4U 17.2” (437mm) x 7” (178mm) x 26” (660mm) |

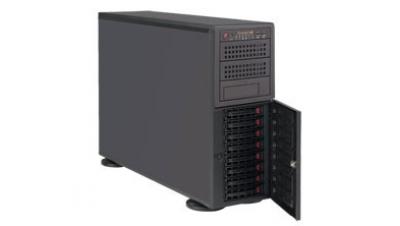

SYS-7048R-TRT
Mainstream, 4U Standalone/Rackmount, 16 DIMMs
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s |
|---|---|
| Key Applications | • Virtualization • Powerful multi tasking workstation (financial analysis, digital video editing, engineering design, scientific computing) |
| Outstanding Features | • 16 DIMM slots • Redundant 920W Platinum Level high-efficiency power supplies • IPMI 2.0 + KVM with dedicated LAN • 8x 3.5” hot-swap SATA3 drive bays • 2 SATA DOM support with built-in power |
| Serverboard | SUPER● ® X10DRi-T |
| Chipset | Intel® C612 Chipset |
| System Memory(Max.)* | Up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 16 DIMM slots |
| Expansion Slots | 3 PCI-E 3.0 x16 3 PCI-E 3.0 x8 |
| Onboard Storage Controller |
Intel® C612 controller for 8 SATA3 (6Gbps) ports; RAID 0,1,5,10 |
| Connectivity | Dual 10Gb Ethernet LAN with Intel® X540 and 10GBase-T Connector |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 8x 3.5” hot-swap SATA3 drive bays |
| Peripheral Bays | 90-degree rotatable module: 2 x 5.25” drive bays & 1x 3.5” drive bays; Optional DVD drive |
| Power Supply | Redundant 920W Platinum Level high-efficiency power supplies with I2C & PMBus |
| Cooling System | 3x 8cm hot-swap cooling fans and 2 x 8cm exhaust fans with air shroud with optimal fan speed control |
| Form Factor | Tower/4U Rackmount 453 x 178 x 648mm (17.8” x 7” x 25.5”) |
