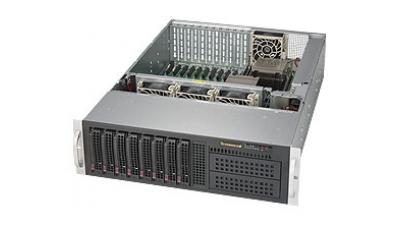

SYS-6038R-TXR
Multi I/O, 11 PCI-E Slots
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s; CPU TDP support Up to 145W |
|---|---|
| Key Applications | • Networking Telephony • Surveillance DVR • Industrial Server Solutions • Head-node controller |
| Outstanding Features | • 16 DIMM slots • 10x PCI-E 3.0 x8, 1x PCI-E 2.0 x4 (in x8) • 8x Hot-swap 3.5” HDD Bays and 2x 5.25” Drive Bays • 2 SATA DOMs Support with Embedded Power • 145W CPU support |
| Serverboard | SUPER● ® X10DRX |
| Chipset | Intel® C612 chipset |
| System Memory(Max.)* | Up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 16 DIMM slots |
| Expansion Slots | 10 PCI-E 3.0 x8 (FH, FL), 1 PCI-E 2.0 x4 (in x8 slot) |
| Onboard Storage Controller |
Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Connectivity | Dual LAN with Intel® i350 Gigabit Ethernet Controller |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 8x 3.5” hot-swap and 2x 5.25” drive bay |
| Peripheral Bays | 1 optional Slim DVD-ROM bay |
| Power Supply | Redundant 1280W Platinum Level Digital power supplies w/PMBus supports |
| Cooling System | 3x middle fans & 1x rear exhaust fan |
| Form Factor | 3U Rackmount 437 x 132 x 647mm (17.2” x 5.2” x 25.5”) |
