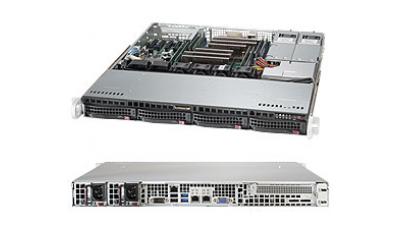

SYS-5018D-MTRF
Reliable Performance
| Processor Support | Single Intel® Xeon® Processor E3-1200 v3, 4th gen. Intel® Core™ i3 Processor, Intel® Pentium® Processor, Intel® Celeron® Processor product families; Single socket H3 (LGA 1150) supported |
|---|---|
| Key Applications | • Data Center • HPC • Enterprise Server • Compute Intensive Storage Environments |
| Outstanding Features | • 400W Redundant high-efficiency power supply w/ optional BBP® module (-MTRF) • 4x 3.5” SATA drives • Four 3.5” SAS/SATA drive bays • IPMI 2.0 + KVM with dedicated LAN • Optimized for server appliance • Dual Gigabit Ethernet LAN • 4x SATA 3.0 (6Gbps) support |
| Serverboard | SUPER● ® X10SLM-F |
| Chipset | Intel® C224 chipset |
| System Memory (Max.)* | Up to 32GB DDR3 ECC 1600 MHz UDIMMs in 4 slots |
| Expansion Slots | 1 PCI-E 3.0 (x8 in 16) FH expansion slot |
| Onboard Storage Controller |
Intel® C224 controller for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10 |
| Connectivity | Dual LAN with Intel® Ethernet Controller i210AT + i217LM |
| VGA/Audio | AST2400 VGA Supports BBP® module (-MTRF) Optional front bezel cover |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 4x 3.5” SATA3 hot-swap bays w/ RAID options |
| Peripheral Bays | 1 slim DVD-ROM drive (optional) |
| Power Supply | 400W Redundant w/ optional BBP® module |
| Cooling System | 4x 28mm fans standard (with optional for additional fan for add-on card) |
| Form Factor | 1U Rackmount 437 x 43 x 503mm (17.2” x 1.7” x 19.8”) |

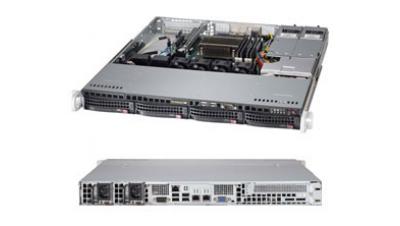

SYS-6018R-MTR
Data Center Optimized, Short Depth
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s |
|---|---|
| Key Applications | • Data Center • Web Server • Enterprise Server • Managed Hosting |
| Outstanding Features | • 400W Redundant Gold Level high-efficiency power supplies • IPMI 2.0 + KVM with dedicated LAN • Short-Depth |
| Serverboard | SUPER● ® X10DRL-i |
| Chipset | Intel® C612 Chipset |
| System Memory (Max.)* | Up to 1TB ECC 3DS LRDIMM or RDIMM DDR4 2400MHz in 8 DIMM slots |
| Expansion Slots | 1 PCI-E 3.0 x8 |
| Onboard Storage Controller |
Intel® C612 controller for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10 |
| Connectivity | Dual Intel® i210 single port Gigabit Ethernet LAN |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 4x 3.5” hot-swap SATA drive bays |
| Peripheral Bays | 1 slim DVD-ROM drive (optional) |
| Power Supply | Redundant 400W Gold Level high-efficiency power supplies |
| Cooling System | 4x 4cm heavy duty counter-rotating fans with optimal fan speed control |
| Form Factor | 1U Rackmount 437 x 43 x 503mm (17.2” x 1.7” x 19.8”) |
