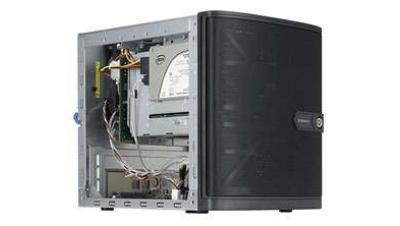

SYS-5029AP-TN2
IoT/Embedded, Atom™ E3940 Apollo Lake SoC, 4 Cores
| Processor Support | Intel® Atom™ E3940 Apollo Lake Processor, SoC 4Cores, 9.5W, 1.6 GHz |
|---|---|
| Key Applications | • Database Processing & Storage • High Performance NAS Servers • Medical Applications • Security Appliance and Video Surveillance • Web Server for Small and Medium Business • Indoor Kiosk |
| Outstanding Features | • Up to 4 Hot-Swap 3.5” SATA3 HDD, 1 internal 2.5” fixed HDD and 1 M.2 (M key 2242/80 PCIe 2.0x2) • Embedded long life • 2x Gigabit LAN ports • Quiet Operation |
| Serverboard | SUPER● ® A2SAV |
| Chipset | System on Chip |
| System Memory(Max.)* | 8GB Unbuffered non-ECC DDR3-1866MHz SO-DIMM in 1 DIMM slot |
| Expansion Slots | 1 PCIe 2.0 x2 in x8 slot, 1 M.2 (M key 2242/80 PCIe 2.0x2), 1 Mini-PCIe with mSATA support |
| Onboard Storage Controller |
Marvel 88SE9230 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10; SoC controller for 2 SATA3 (6Gbps) ports |
| Connectivity | 2x 1GbE LAN, 2 USB3.0, 3 USB2.0(2 front, 1 Type A), 1 Serial Port (RJ45) ALC 888S HD Audio |
| VGA/Audio | 1 HDMI, 1 DP, 1 VGA or 1 eDP, Intel HD Graphic 3 independent displays |
| Management | vPro and AMT |
| Drive Bays | 4x 3.5” hot-swap SAS/SATA 2x 2.5” fixed drive bay |
| Peripheral Bays | 1x slim DVD-ROM drive bay (shared with 1 x 2.5” fixed drive bay) |
| Power Supply | PWS-251-1H 250W Flex ATX Multi-output Bronze Power Supply |
| Cooling System | 1x 12cm rear exhaust fan;, SNK-P0046A4 - optional |
| Form Factor | Mini-Tower; Enclosure: 210 x 240 x 279mm (8.27” x 9.45” x 11”) Package: 315 x 350 x 410mm (12.4” x 13.78” x 16.14”) |

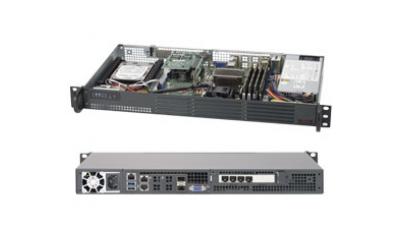

SYS-5018D-LN4T
Intel® Pentium® Processor D1508 SoC, Dual Core
| Processor Support | Intel® Pentium® Processor D1508, FCBGA1667 supported, CPU TDP support 25W |
|---|---|
| Key Applications | • Compact Network Appliance • FireWall Applications • Software Definded WAN |
| Outstanding Features | • Intel® Xeon® processor D-1508, Dual-Core, 25W • Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets • 4 x 2.5” SATA3 HDD, and 1 M.2 (M key 2242/80/110 PCIe 3.0x4) |
| Serverboard | SUPER● ® X10SDV-2C-TP4F |
| Chipset | System on Chip |
| System Memory(Max.)* | Up to 128GB Registered ECC RDIMM and DDR4-2133MHz 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots |
| Expansion Slots | 1 PCI-E 3.0 x8; M.2 PCIe 3.0x4, M Key 2242/2280/22110, Mini-PCIe with mSATA support |
| Onboard Storage Controller |
SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 RSTe; |
| Connectivity | 2x 1GbE LAN, 2x 10G SFP+, 1 dedicate IPMI LAN, 2 USB3.0 |
| VGA/Audio | VGA via BMC |
| Management | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog |
| Drive Bays | 1x 3.5” fixed drive bay or up to 4x 2.5” fixed drive bay |
| Peripheral Bays | N/A |
| Power Supply | 200W Low-Noise AC-DC power supply with PFC |
| Cooling System | 1x 4028mm 13K RPM 4-PIN PWM FAN |
| Form Factor | 1U Short Depth Rackmount; Enclosure: 437 x 43 x 249mm (17.2” x 1.7” x 9.8”) Package: 655 x 155 x 465mm (25.8” x 6.1” x 18.3”) |

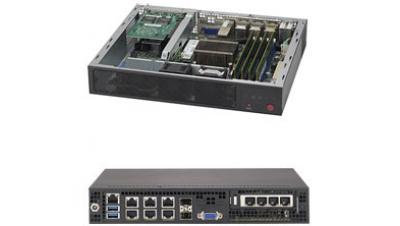

SYS-E300-8D
Intel® Xeon® Processor D-1518, SoC, 4 Core
| Processor Support | Intel® Xeon® Processor D-1518, SoC 4 Core, 35W, 2.2 GHz |
|---|---|
| Key Applications | • Embedded Networking Applications • Network Security Appliance • FireWall Applications • Virtualization Server |
| Outstanding Features | • Low Power Xeon D SoC 4 Core • Best Performance per Watt • 7 year life cycle • IPMI 2.0 management with dedicated LAN |
| Serverboard | SUPER● ® X10SDV-TP8F |
| Chipset | System on Chip |
| System Memory(Max.)* | Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets |
| Expansion Slots | 1 PCIe 3.0 x8 AOC slot (LP), 1 M.2(M Key for SSD 2242/80/110, PCIe/SATA3.0, 1 Mini-PCIe /w mSATA |
| Onboard Storage Controller |
SoC controller for 4x SATA3.0 |
| Connectivity | 6x GbE and 2 SFP+, 1 dedicated management port, 2x USB 3.0 |
| VGA/Audio | VGA via BMC |
| Management | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog |
| Drive Bays | 1x 2.5” fixed drive bay with bracket. (No 2.5” fixed drive bay when AOC area is occupied.) |
| Peripheral Bays | N/A |
| Power Supply | DC power adapter |
| Cooling System | Passive CPU heat sink and 2x 40mm chassis fans |
| Form Factor | 1U Compact Box; Enclosure: 254 x 43 x 226mm (10”x 1.7” x 8.9”) Package: 381 x 276 x 142mm (15” x 10.87” x 5.59”) |
