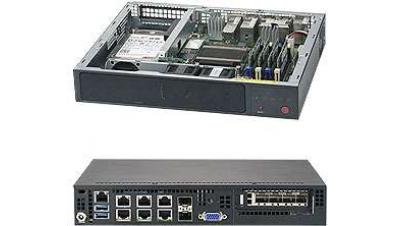

SYS-E300-9A
IoT/Embedded, Intel® Atom® Processor C3858 Denverton SoC, 12 Cores
| Processor Support | Intel® Atom™ Processor Denverton C3858, SoC 12 Cores, 25W, 2.0 GHz |
|---|---|
| Key Applications | • Embedded Networking Applications • Network Security Appliance • FireWall Applications • Virtualization Server |
| Outstanding Features | • Best Performance per Watt • 7 year life cycle • IPMI 2.0 management with dedicated LAN |
| Serverboard | SUPER● ® A2SDi-TP8F |
| Chipset | System on Chip |
| System Memory(Max.)* | Up to 64GB Unbuffered ECC/non-ECC SO-DIMM, DDR4-2400MHz, in 4 DIMM slots |
| Expansion Slots | 1 PCI Express 3.0 x4 AOC slot (LP), 1 M.2(M Key for SSD 2242/80, PCIe/SATA3.0), 1Mini-PCIe /w mSATA Half Size |
| Onboard Storage Controller |
SoC controller for 4x SATA3.0 |
| Connectivity | 2x 10GbE SFP+, 2x 10GbE LAN, 4x 1GbE LAN, 1 dedicated IPMI LAN, 2 USB 3.0 |
| VGA/Audio | VGA via BMC |
| Management | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog |
| Drive Bays | 2x 2.5” fixed drive bay: one with bracket, one on base mount. (1x 2.5” fixed drive bay when AOC area is occupied.) |
| Peripheral Bays | N/A |
| Power Supply | Lockable 12V DC 84W power adapter |
| Cooling System | 2x 40x28mm 4-PIN PWM Fan(FAN-0065L4, 13K RPM) |
| Form Factor | 1U Compact Box; Enclosure: 254 x 43 x 226mm (10” x 1.7” x 8.9”) Package: 381 x 276 x 142mm (15” x 10.87” x 5.59”) |

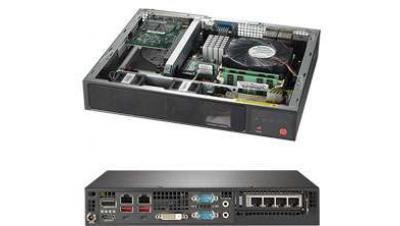

SYS-E300-9C
IoT/Embedded, 8th Generation Intel® Core™ i Processor, Edge Computing
| Processor Support | 8th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor |
|---|---|
| Key Applications | • IoT Edge Computing • DVR/NVR • Machine Automation • Digital Signage • Medical Applications • IoT Gateway |
| Outstanding Features | • Coffee Lake 8th Gen Core i3/i5/i7 • Embedded long life • 1U Box Edge Devices • TPM onboard |
| Serverboard | SUPER● ® X11SCV-Q |
| Chipset | Intel® Q370 chipset |
| System Memory(Max.)* | Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz, in 2 DIMM slots |
| Expansion Slots | 1x PCI Express 3.0 x16 AOC slot (LP)and M.2 M key: SATA/PCI-E 3.0 x4, support 2242/2280 length; M.2 E KEY: PCI-E 3.0 x1,support 2230 length |
| Onboard Storage Controller |
Q370 controller for 2 SATA3 ports; RAID 0,1 |
| Connectivity | 2 X 1GbE LAN with AMT, 4 x USB 3.1 (2 type A & 2 type C in rear), HD Audio(Mic In/Line Out) |
| VGA/Audio | 1 DVI-D, 1HDMI, 1DP(DisplayPort), 3 Independent displays; 1 eDP(Embedded DisplayPort) |
| Management | AMT, NMI, SuperDoctor® 5, vPro, Watchdog |
| Drive Bays | 2x 2.5” fixed drive bay |
| Peripheral Bays | N/A |
| Power Supply | Lockable 12V DC 150W power adapter |
| Cooling System | 2x 4cm high performance PWM fan; optional for 1x fan to add-on card area cooling |
| Form Factor | 1U Compact Box; Enclosure: 254 x 43 x 226mm (10” x 1.7” x 8.9”) Package: 381 x 276 x 142mm (15” x 10.87” x 5.59”) |

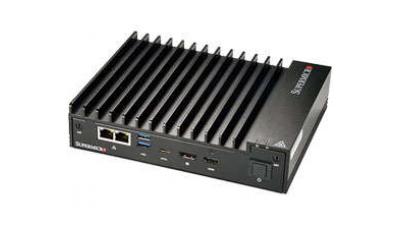

SYS-E100-9S
IoT/Embedded, Fanless Compact BOX PC
| Processor Support | 7th Generation Intel® Core™ i7-7600U Processor |
|---|---|
| Key Applications | • IoT Edge Computing • Kiosk, Interactive information system • Environmental Monitor |
| Outstanding Features | • 1 HDMI and 1 Display Port • 1 USB3.1, 2 USB 3.0, 4 USB 2.0 • 4 COM (RS-232/422/485), 1 DIO via DB9 • 2 Gigabit Ethernet Ports • TPM2.0 onboard |
| Serverboard | SUPER● ® X11SSN-H-WOHS |
| Chipset | System on Chip |
| System Memory(Max.)* | Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots |
| Expansion Slots | 1 Full size Mini-PCIe; 1 M.2 2280 B-Key |
| Onboard Storage Controller |
1 M.2 2280 B-Key for SATA SSD |
| Connectivity | Dual LAN with Intel®PHY I219LM, 1 USB3.1, 2 USB3.0, 4 USB2.0, 4 COM (RS-232/422/485), 1 DIO via DB9, TPM2.0 onboard |
| VGA/Audio | 1 DisplayPort, 1 HDMI |
| Management | AMT, SuperDoctor® 5, vPro, Watchdog |
| Drive Bays | N/A |
| Peripheral Bays | N/A |
| Power Supply | Lockable 12V DC 60W power adapter |
| Cooling System | Fanless |
| Form Factor | 1U Box; Enclosure: 195 x 44 x 151mm (7.68” x 1.73” x 5.94”) Package: 241 x 140 x 203mm (9.5” x 5.5” x 8”) |
