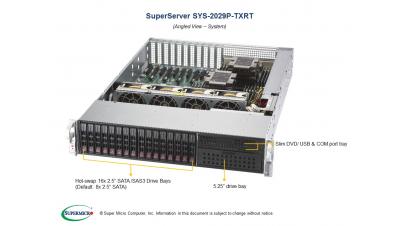

SYS-2029P-TXRT
X11 Max I/O, 2U 11 PCI-E Slots
| Processor Support | Intel® Xeon® Processor Scalable Family – Skylake |
|---|---|
| Key Applications | • Industrial Server • Networking Telephony • Surveillance DCR • GPU Pass-through VM server • Flash Array Server • Head-node controller |
| Outstanding Features | • SKL (up to 205W), 3 UPI designed for up to 10.4 GT/s[nid:9987] • 11 Low-profile PCI-E slots • 16x Hot-swap 2.5” HDD Bays • 1x PCI-E 3.0 x4 M.2 Slot • Redundant (1+1) 1KW 1000 W Titanium level 96+% |
| Serverboard | SUPER● ® X11DPX-T |
| Chipset | Intel® C621 chipset |
| System Memory(Max.)* | Up to 2TB Registered ECC, DDR4-2666MHz in 16 DIMM slots |
| Expansion Slots | 11 Low-profile PCI-E slots 2 PCI-E 3.0 x16 Slots 8 PCI-E 3.0 x8 Slots (6x open end slots, 2x PCI-E x16 slots by MUX) 1 PCI-E 3.0 x4 in x8 slot |
| Onboard Storage Controller |
Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10; |
| Connectivity | Dual 10G baseT LAN(X550-AT2) |
| VGA/Audio | 1 VGA, Aspeed AST2500 |
| Management | Intel® Node Manager; IPMI2.0 |
| Drive Bays | 16x 2.5” SATA/ SAS Hot Swap HDD Bay |
| Peripheral Bays | 1x slim DVD-ROM drive bay, 1x FDD bay, 1x standard 5.25” drive bay |
| Power Supply | Redundant 2 Qty. PWS-1K05A-1R |
| Cooling System | 4x middle fans 3x middle |
| Form Factor | 2U Rackmount; Enclosure: 437 x 89 x 650mm (17.2” x 3.5” x 25.6”) Package: 686 x 376 x 947mm (27” x 14.8” x 37.3”) |

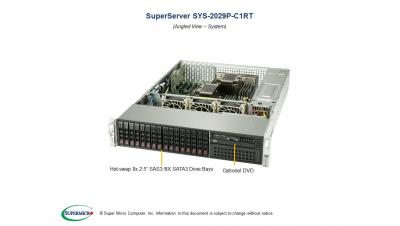

SYS-2029P-C1RT
X11 Mainstream, 8x 2.5” SAS3 Drive Bays
| Processor Support | Dual Socket P (LGA 3647), Intel® Xeon® processor Scalable Family; UPI up to 10.4GT/s, Support CPU TDP 45-205W |
|---|---|
| Key Applications | • Application and data serving • Big Data Analytics • Business Critical Applications • Compute Intensive Application • Compute Intensive Storage Environments • Connectivity/Storage Computer Nodes |
| Outstanding Features | • optional support 2x NVMe fixed drives • 1x M.2 support by default • 8x 2.5” SAS & 2x SATA3 2.5” HDD Bay • 2 SATA DOM support with embedded power • 16 DIMM sockets • 1200W Redundant Power, Titanium Level (96% typical efficiency ) • Independent power & cooling control |
| Serverboard | SUPER● ® X11DPi-NT |
| Chipset | Intel® C622 chipset |
| System Memory(Max.)* | Up to 2TB ECC RDIMM/LRDIMM, DDR4-2666MHz in 16 DIMM slots |
| Expansion Slots | Supports total 5x low profile add-on cards in 4x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 slots |
| Onboard Storage Controller |
RAID 0,1,5,10; Broadcom® 3108 HW with 2G Cache controller (AOC-S3108L-H8iR-16DD)for 8 SAS3 (12Gbs) ports; RAID 0,1,5,6,10,50,60; Intel® C622 controller for 10 SATA3 (6 Gbps) ports |
| Connectivity | Dual LAN RJ45 ports with Intel® X722 10G base-T Ethernet Controller; 1xDedicated IPMI LAN RJ45 port |
| VGA/Audio | 1 VGA, 1 Aspeed AST2500 BMC; |
| Management | Intel® Node Manager; IPMI2.0; KVM with dedicated LAN; SPM; SSM; SUM; SuperDoctor® 5; Watchdog; |
| Drive Bays | 8x 2.5” 12Gbps SAS3 and 8x 2.5” 6Gbps SATA3, total 16 hot-swap drives |
| Peripheral Bays | USB Support: Rear: 2x3.0 + 2x2.0, Front: 2x2.0, and 1x Type A; optional DVD-ROM drive: support either 1x slim or 1x 5.25” DVD drive. |
| Power Supply | 2x Redundant 1200W Redundant Power, Titanium Level (96% typical efficiency) |
| Cooling System | 3x 80mm heavy duty fans with PWM fan speed and cooling zone control; Adjustable Air Shroud with Enhanced cooling design |
| Form Factor | System Gross Weight: 28.8KG/63Lbs; System Net Weight: 17.4KG/38Lbs; System Dimension: 3.5” (89mm) x 17.2” (437mm) x 24.8” (630mm);Package Dimension:26.5” (W) x 10.5” (H) x 38” (L); Enclosure: 437 x 89 x 630mm (17.2”” x 3.5” x 24.8”) Package: 737 x 279 x 983mm (29” x 11” x 38.7”) |

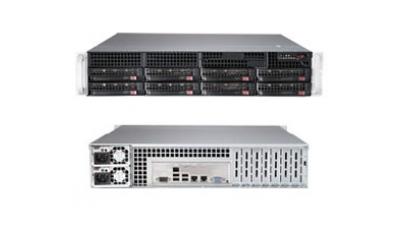

SYS-6028R-TRT
Mainstream, 2U 8-bay Hot-swap, 3.5” HDDs w/ 16 DIMMs
| Processor Support | Dual Intel® Xeon® Processor E5-2600 v4/v3 product families supported; QPI up to 9.6GT/s |
|---|---|
| Key Applications | • Cloud and Virtualization needs • Hosting & Application delivery • Database processing & Storage • Simulation & Automation |
| Outstanding Features | • 16 DIMM slots • Redundant 740W Platinum Level high-efficiency power supplies • IPMI 2.0 + KVM with dedicated LAN • 8x 3.5” hot-swap SATA3 drive bays • 2 SATA DOM support with built-in power |
| Serverboard | SUPER● ® X10DRi-T |
| Chipset | Intel® C612 Chipset |
| System Memory(Max.)* | Up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 16 DIMM slots |
| Expansion Slots | 3 PCI-E 3.0 x16 (LP) 3 PCI-E 3.0 x8 (LP) |
| Onboard Storage Controller |
Intel® C612 controller for 8 SATA3 (6Gbps) ports; RAID 0,1,5,10 |
| Connectivity | Dual 10Gb Ethernet LAN with Intel® X540 and 10GBase-T Connector |
| VGA/Audio | AST2400 VGA |
| Management | IPMI 2.0 + KVM with dedicated LAN, Intel® Node Manager, SUM, SPM, SSM, SuperDoctor® 5, Watchdog |
| Drive Bays | 8x 3.5” hot-swap SATA3 drive bays |
| Peripheral Bays | 1 slim DVD-ROM drive (optional) |
| Power Supply | Redundant 740W Platinum Level high-efficiency power supplies with I2C & PMBus |
| Cooling System | 3x 8cm hot-swap PWM cooling fans with air shroud with optimal fan speed control |
| Form Factor | 2U Rackmount 437 x 89 x 648mm (17.2”x 3.5” x 25.5”) |
